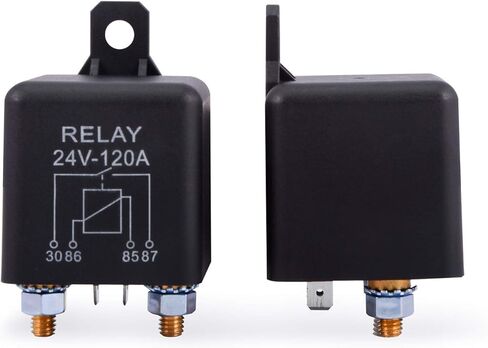

FOSHIO Car Truck Boat Switch 24VDC 120A SPST 4pin Relay Heavy Duty Split Charge Starter Relay with Terminals

Special Features

Multifuction Use : Ideal for adding car stereo, starter kills, alarm system, remote start, fog lights, undercar lighting, turn on dome light, shared door handle, add ignition/accessory outputs, truck release, reverse polarity, door locks, honk the horn and more.
Self Installation: the product include relay terminals. You can according to your need to install the relays.
Absolute Package Box : Offer you perfect shopping experience . Protect the Relays during the shipping .
Waterproof Relays

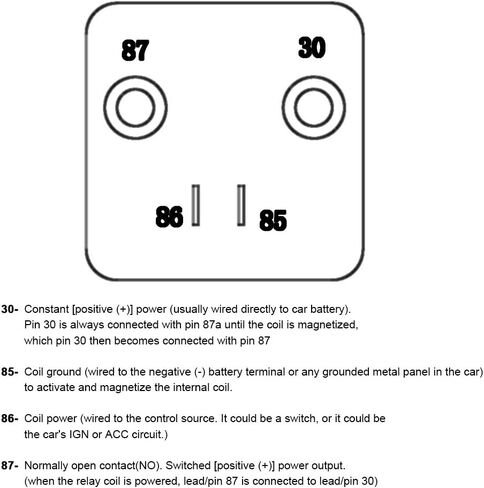

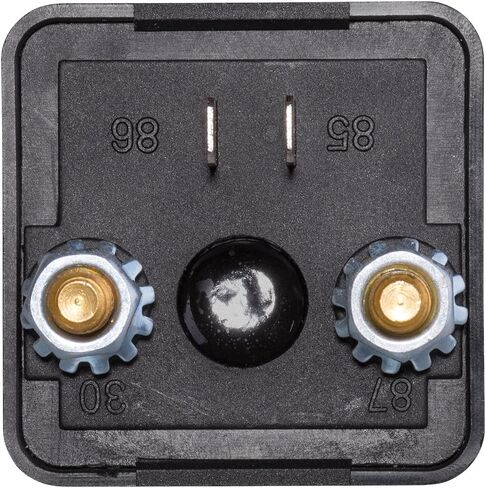

Heavy Duty 4-Pin SPST (Single Pole Single Throw) Automotive Relay. 120A High Current Carrying Capacity.

Description

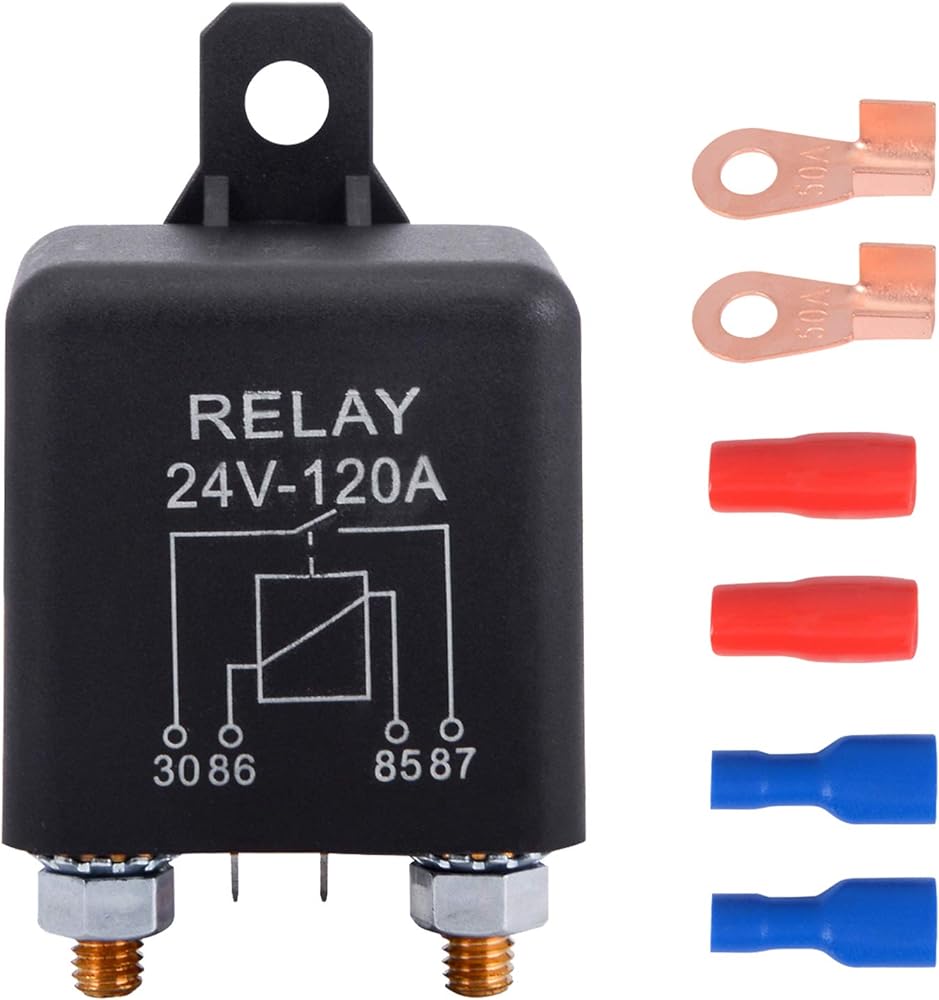

Package include:
1x 24V 120A SPST Relay
1x Terminals 4 pin

CONTACT DATA:
Contact Material: AgSnO12
Contact Form: 1H(1A)
Contact Ratings: NO:120A 28VCD
Contact Resistance: 100mMax at6VCD 1A
Max Switching Current: 300A(5ms)
Max Switching Voltage: 75VCD
Max Switching Power: 2000W
Life Expectancy Electrical: 100,00 Operations (at30 Operations/Minute)
Life Expectancy Mechanical: 10,000,000 Operations

COIL SPECIFICATION:
Nominal Voltage(VCD):24
Coil Resistance(?)?4.8W/120
Max Operate Voltage (VCD):12~16.8
Mix Release Voltage (VCD):2.4~7.2
Max Applicable Voltage(VCD):31.2

CHARACTERISTICS:
Temperature Range: -30~+80°C
Vibration Resistance: 10-55Hz,1.5mm
Hunidity:40%~85%
Insulation resistance: 100m ? Min at 500VDC
Dielectric Strength Between Open Contacts:500VAC (for one minute/see)
Between Contact and coil: 750VAC (for one minute/see)
Operate Tice: 7ms
Release Tice:5ms
