1. Smoother Sliding: The slider adopts a steel wire holder structure to effectively prevent the steel balls from falling off, and the accurate steel ball rows is very stable with small friction, also very durable.
2. High in Accuracy: The linear guide rail is interchangeable, and the slider or guide rail, or even the linear guide rail group, can be replaced separately to obtain high accuracy guidance again. Fully sealing system, smooth sliding without jamming, high positioning accuracy.
3. Wide Application: Linear guide is not only suitable for high accuracy equipment such as CNC machine tools, injection molding machines, and miniaturized equipment, but also for all fields that require accuracy transmission control and positioning.
4. Good Bearing Steel: Made of premium bearing steel, it can bear high loads. With automatic centering function, it can achieve accurate positioning at μm level.
5. Quick Installation: Comes with a compact size and a light weight as well, the carriage block is very convenient to install in minutes.

Spec:
Item Type: Linear Guide Rail
Model: MGN7H-300-1R
Sliding Trajectory: Linear Guide Rail
Slide Block Fixing: Locked Type

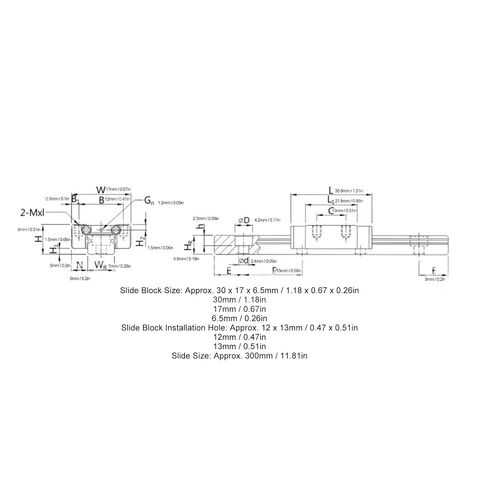

Slide Block Size: Approx. 30 x 17 x 6.5mm / 1.18 x 0.67 x 0.26in
Slide Block Installation Hole: Approx. 12 x 13mm / 0.47 x 0.51in
Slide Block: 1pc
Material: Bearing Steel
Slide Rail Size: Approx. 300mm / 11.81in
Slide Rail Fixing Bolt Size: M2 x 6

How to Use:
1. Place the carriage block parallel to the guide rail.
2. Gently push the carriage block into the guide rail.
3. The carriage block enters the guide rail.
4. Successfully installed without dropping steel balls.

Package List:
1 x Linear Guide Rail
