Product Name: 6 Port SATA III PCIe Card/ASMedia ASM1166 Chip
Model:E802

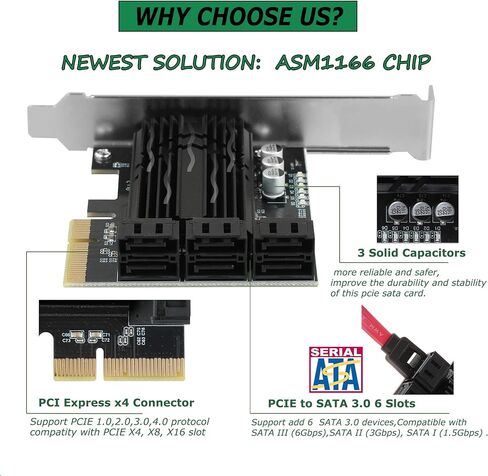

Product Chip: ASMedia ASM1166
Number of Capacitors: 3 capacitors for stabling power supply
Support System: WIN XP/ WIN7 / WIN8/ WIN10 / Linux/ Synology/ Ubuntu
Supports the AHCI1.0 mode
Support Most of Computer Cases (includes mini computer case)

Function:
The PCIe X4 6 SATA 3.0 ports controller card provides a simple connection between a host computer and SATA 3.0 devices (SATA hard drive or SATA Device), which allows 6 SATA devices with a speed of up to 6 Gbp / s.

Features:

PCIe
Support PCIe X4, X8, X16 slots
Compliant with PCI-Experss 3.0 specifications and backward compatible PCI-Express Gen 1 and Gen 2
Compliant with Serial ATA Specification 3.0 and backward compatible Serial ATA Specification 2.0 and 1.0
Support communication speed of 2.5 Gbps

SATA Controller
Support 6 SATA extension ports
Compliant with Serial ATA Specification 3.0 and backward compatible Serial ATA Specification 2.0 and 1.0
Support transfer speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.

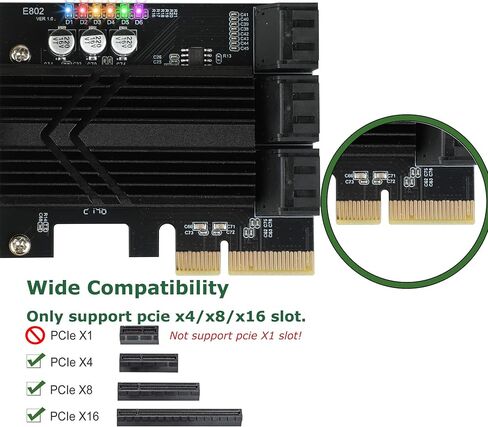

The chip is designed on PCIE X4 interface, will only works on PCIE X4, X8, X16 slot.
Supported Hot Swap
NOTED: The blue light is always on when the hard disk is inserted, and the blue light flashes when reading data.

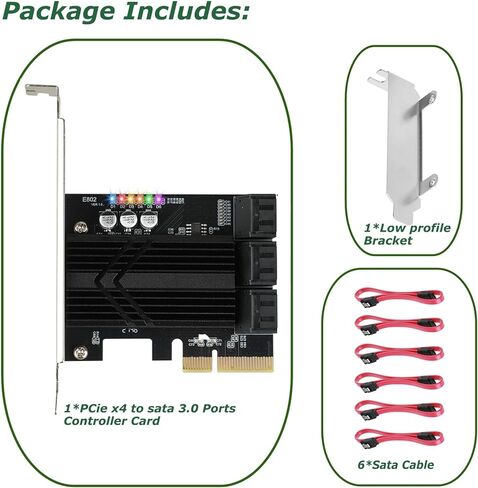

Package includes:
1* PCIe to 6 SATA 3.0 ports controller card
6* SATA cables
1* 15pin SATA power splitter cable
1* Standard Profile Bracket
1* Low Profile Bracket
