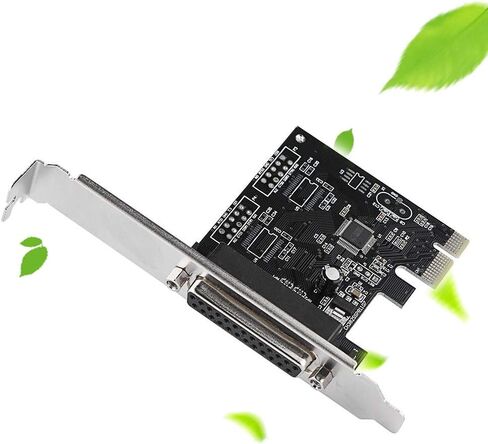

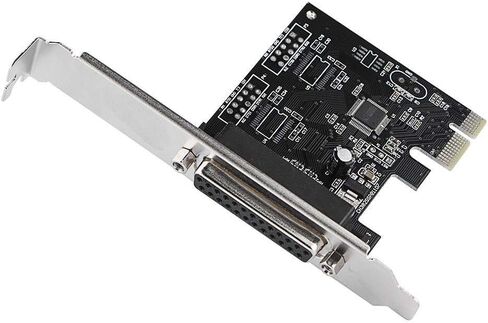

A PCI Express single parallel port card that can be connected to parallel devices such as printers, programmers, scanners, etc. Supports a variety of mainstream operating systems, including for Windows, MAC and Linux. The product uses a PCI Express x1 slot that can be installed in a variety of PCI Express slots (including 4x 8x16x).

Specifications:
Compliant with PCI Express Specification Revision 1.1
Built in SPP, PS2, EPP, ECP compatible IEEE 1284 printing protocol
No switch without jumper, easy to set up with software
32 bit bus design, supporting PCI 2.1 specification
Use high speed I/O controller (16C550C or compatible UART)
Support 8CM short iron piece
Support DOS, Windows 8 / 7 / Vista / XP / 2000 / Server 2003 2008 32/64 bit, Linux & Mac OS/X 10.5 and other operating systems
Parallel interface (LPT)
Comply with IEEE 1284 parallel port protocol
I/O address: assigned by BIOS
IRQ: Assigned by BIOS
Support: SPP, PS2, EPP & ECP and mode
Main chip: 9805 chip
Support: For Windows95/98/98SE/2000/ME/NT4.0/XP, Linux, DOS, VISTA, WIN7
Built in 16 Byte FIFO
32 bit bus design, supporting PCI 2.1 specification
Interface: PCI E TO parallel port (25 holes)

Package List:
1 * LPT Card
1 * Cover Board
