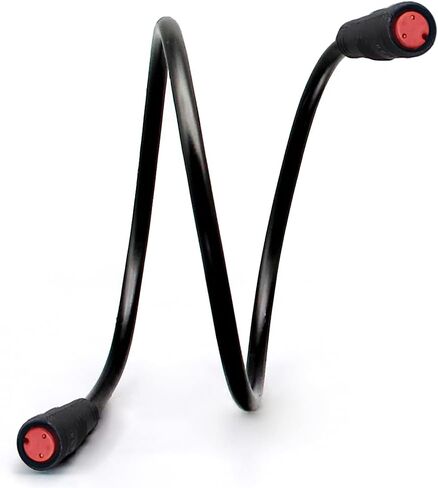

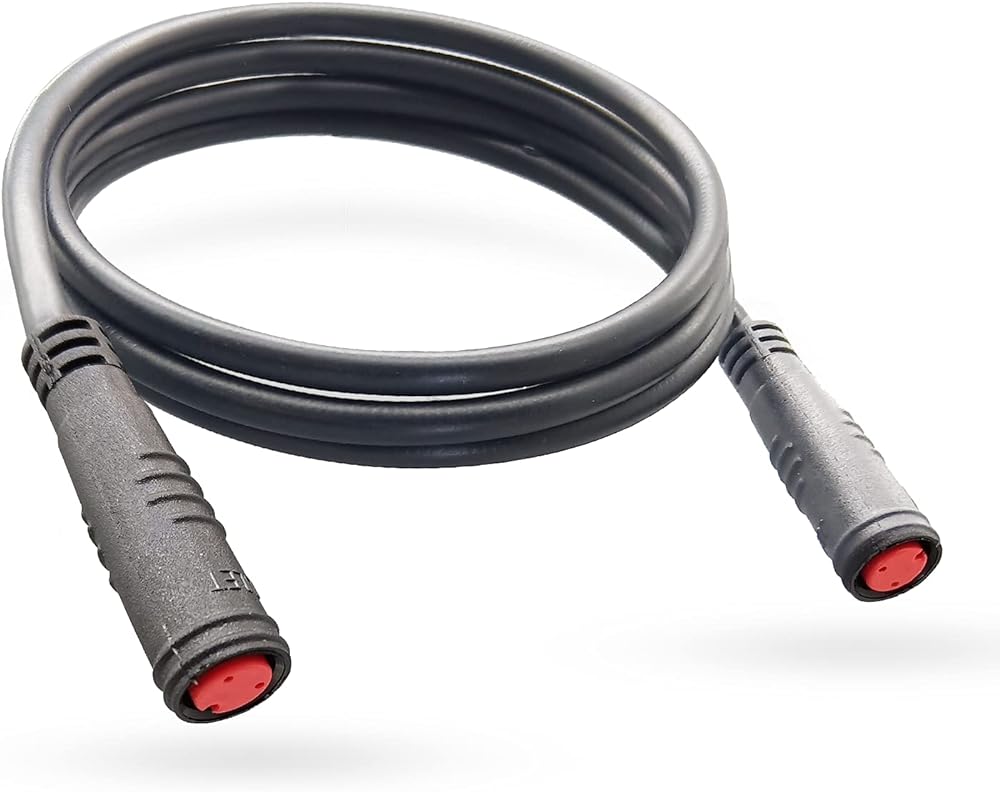

Dbrand Extension Cable 2Pin/3Pin/4Pin/5Pin/6Pin/9Pin Plug Waterproof Connector for Ebike Kit,Display/Ebrake/Throttle/Shift Sensor/Hub Motor/Mid-Motor Signal Extension Cable

KWD 4.500
Brand
Dbrand
Weight
30 g

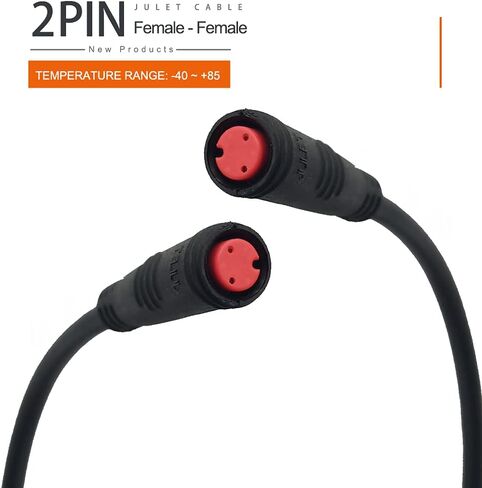

Color2pin Female-Female
– 1 +

Special Features

  • Universal Compatiblity: Extend your thumb throttle,twist throttle,electric bike hub motor, ebrakes, brake sensors,gear sensor and display cable
  • Wire Model: 2pin/3pin/4pin/5pin/6pin/8pin/extension cable for electric bike kit
  • Connection: 2 Pin Female to Male,2 Pin Female to Female,3 Pin Female to Male,3 Pin Male to Male,4 Pin Female to Male,5 Pin Female to Male,6 Pin Female to Male,8Pin Female to Male
  • Length: 80cm/31.5in (including connectors)；8pin：60cm/130cm/160cm ; IP66 waterproof connector
  • Warranty:We are committed to creating a good shopping experience. Your satisfaction is our ultimate goal. We can also accept DIY custom service, if you have related needs, you can leave me a message. Any other questions, free to contact us. We will reply you within 24 hours.

Description

Product model: JL-F-Z209AT.Z309AT.Z409AT.Z509AT.Z609AT

Temperature range: -40 ° C ~ +85 ° C
Rated voltage: 200V AC
Rated current: 3A (determined by cable according to specific conditions)
Contact resistance: ≤10mΩ
Insulation resistance: ≥10MΩ under normal conditions and humid conditions
Withstand voltage: AC 200V 50Hz 1 minute without breakdown or flashing
Contact: Copper alloy tin/gold plating
Protection level: IP66
Mechanical life: 200 times
Maximum outer diameter: 9mm
length: 800mm
Use wire specification: 0.05mm-0.2mm
Applications: Power supply and signal transmission for electrical and electronic equipment（Light/Throttle/Ebrake/Display）
