مفتاح حد باومين WLCL قابل للتعديل قضيب رافعة مؤقتة 380 فولت 10 أمبير

KWD 8
ماركة
Baomain
وزن
351 g
– 1 +

مميزات خاصة

  • Actuator Action: Momentary; Actuator Type: Adjustable Rod Lever

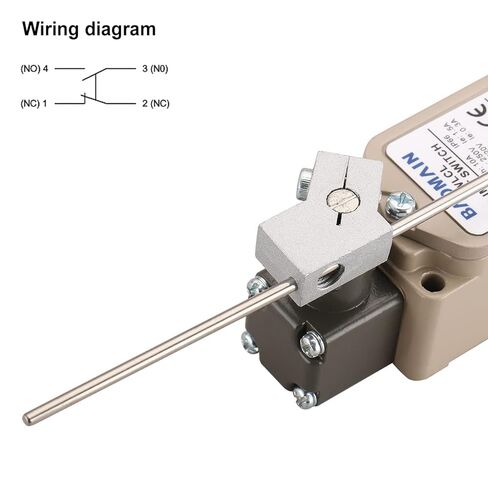

  • Contact Type: 1NC + 1NO; Ui: 380V, Ith: 10A,AC-15, Ue: 250V, Ie: 1.5A

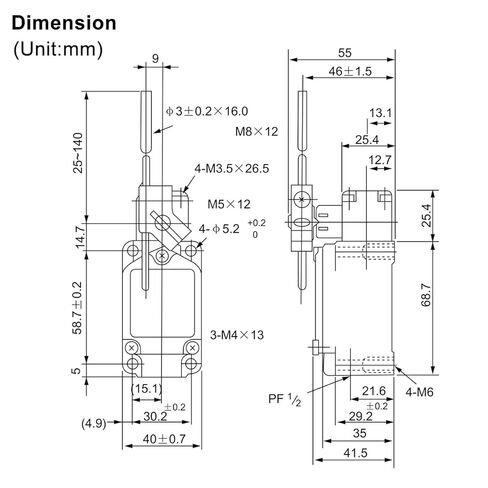

  • Actuator Size : 3 x 157mm / 0.12" x 6.18"(Diameter*L)
  • Installing Hole Distance(center): 58 x 30mm / 2.3" x 1.2"(L*W); Fit Cable Diameter: 12.7mm / 0.5"
  • Weight : 320g;Degree of protection: IP65;
  • Package Content: 1 x Limit Switch,Screws

وصف

This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant.
motion direction or speed transformation, automatic control of machine tool, limit movement of machine parts or control program.
Double Rotary Roller Lever Actuator, 1NO+1NC Contact Configuration, can rotate to the left and to the right.
