12Pcs White Mini Self-Locking On Off Switch AC 250V 1.5A 125V3A 2Pin 12V 12mm Latching Push Button Micro Round Pushbutton Switch with Terminal Wires and Wiring Cap for RV Car PC Table Lamp

KWD 3.500
Brand
MKBKLLJY
– 1 +

Special Features

  • 🟢【Specifications】Operation Type: Self-latching;Terminals : 2 pin;Polarity: SPST;Voltage And Current : AC 250V / 1.5A; AC 125V / 3A;Contact Resistance : <50Mohm;Insulation Resistance : >100Mohm;Pre-Wired Length : 120mm/4.7inch;Push Button Hole Diameter : 12mm;Push button hole thread: 0.75mm;Material : Plastic + metal;Color : White.
  • 🟢【Easy Installation】: Because the terminals of the push button switch are so small, you must be very careful when soldering the wires or you may burn the push button switch. To avoid this, our switches come with 12cm pre-soldered wires. Perfectly eliminate the burnout problem of the button switch.

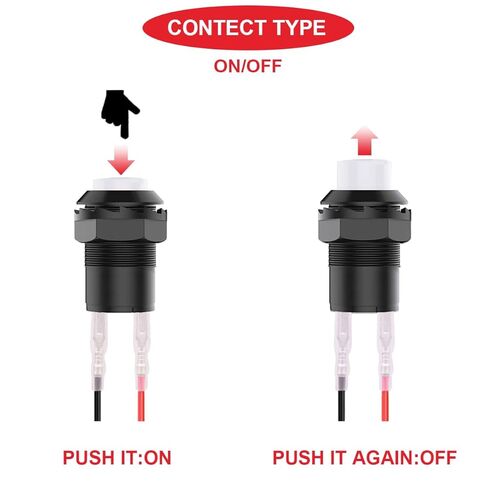

  • 🟢【Self-locking switch】This switch is not a momentary switch, it is a self-locking switch. You press the switch, and the circuit of the switch closes. You have to press the switch again for the switch's circuit to disconnect.
  • 🟢【Wide Application】Self-locking switch is suitable for PC computer power switch, table lamp switch, fan switch, water dispenser switch, diy electronic circuit switch, etc.
  • 🟢【Package Content】12 x White Self-Latching Switch;24 x Locked Terminal Wires;24 × 2.8mm Insulating Sleeve;12 x Wiring cap.

Description

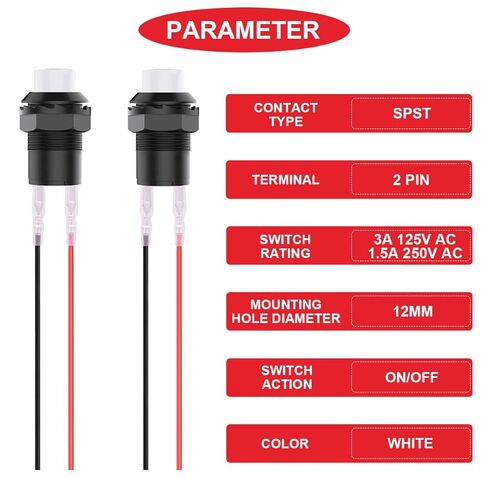

Specifications:
Operation Type: Self-latching;
Terminals : 2 pin;
Polarity: SPST;
Voltage And Current : AC 250V / 1.5A; AC 125V / 3A;
Contact Resistance : Insulation Resistance : >100Mohm;

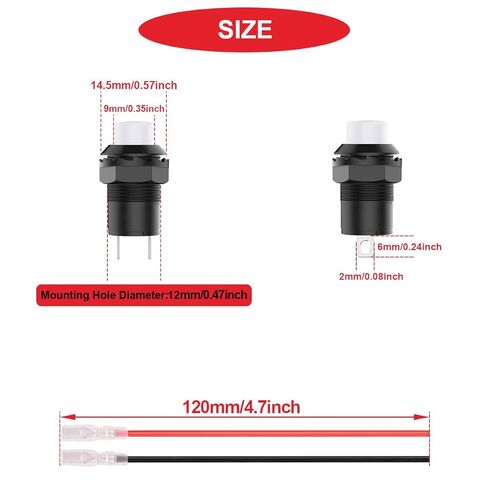

Pre-Wired Length : 120mm/4.7inch;
Push Button Hole Diameter : 12mm;
Push button hole thread: 0.75mm;
Material : Plastic + metal;
Color : White;

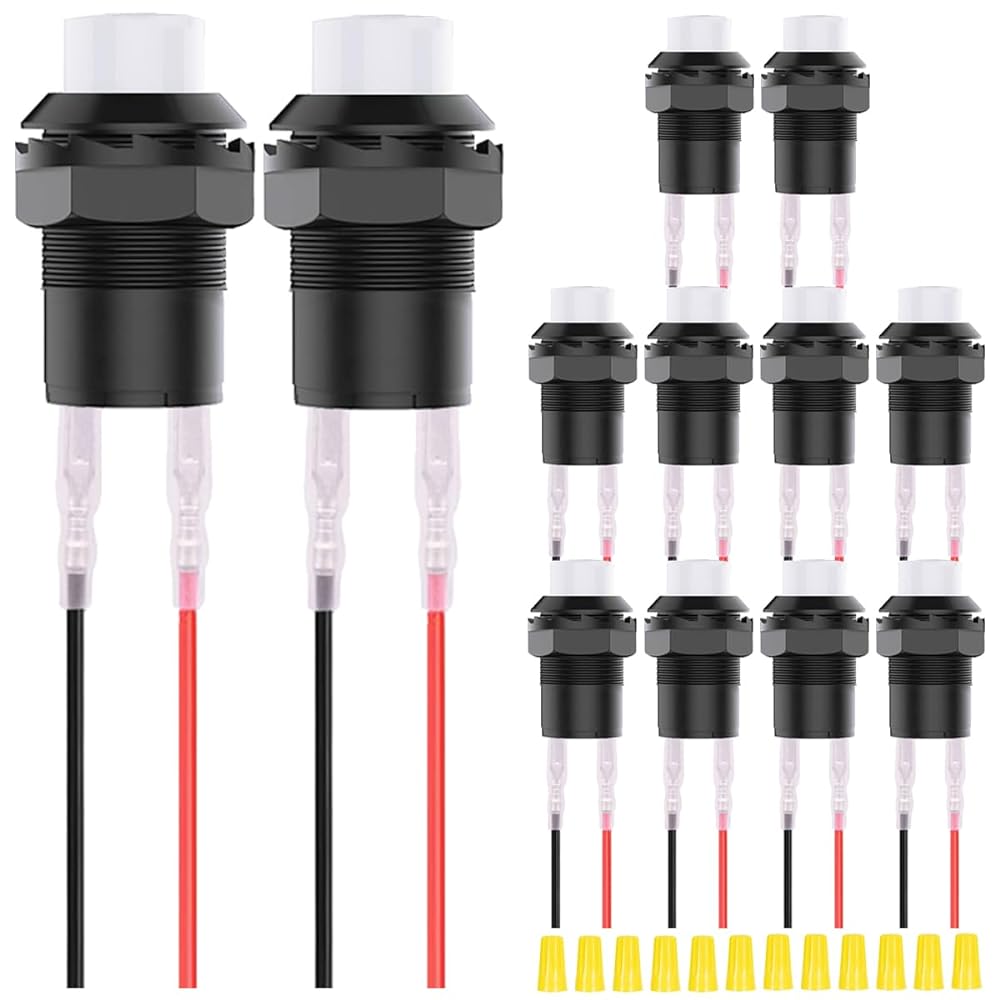

Package Included:
12 x White Self-Latching Switch;
24 x Locked Terminal Wires;
24 × 2.8mm Insulating Sleeve;
12 x Wiring cap.

Features:
1. Solid plastic and alloy material mini push button switch, high precision mechanical design offers perfect function and long service life.
2. With highly advanced technology as well as superior material, this button switch features excellent sensitivity and great durability.

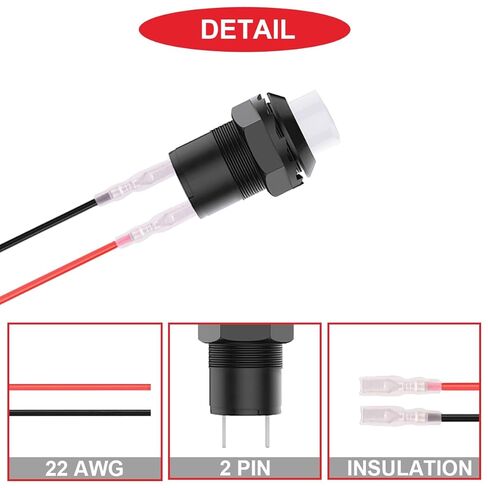

3. Locked Terminal Wires design,easy installation, save time.
