Compatible P/N:

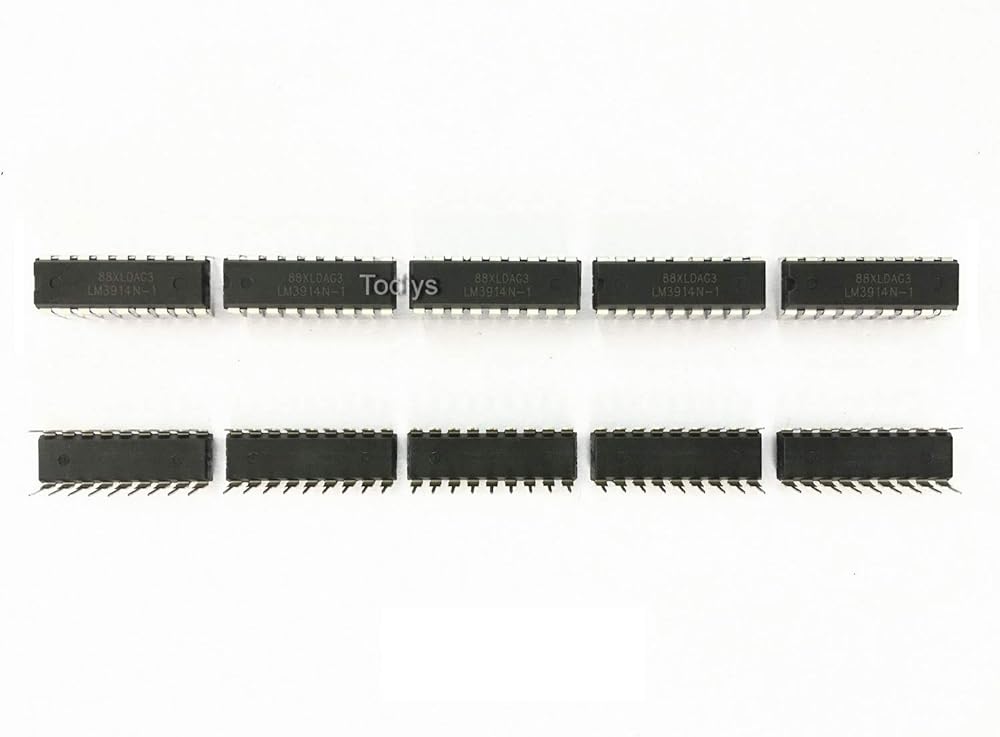

LM3914 LM3914N LM3914N-1
Description:
Condition: 100% Brand New And High Quality
Material: Electrical Components
Color: See Pictures
Encapsulation: DIP-18
Expandable to displays with up to 100 steps
Internal Reference Voltage: 1.2V~12V
Output Current: 2 mA to 30 mA
Operating Voltage 3V~25V
Working Temperature: 0°C to +70°C
Size: 23mm x 8.4mm x 7.2mm
Quantity: 10 Pcs
The LM3914N-1 is a monolithic integrated circuit that senses analog voltage levels and drives 10 LEDs (Drives LEDs, LCDs or Vacuum Fluorescents), providing a linear analog display. A single pin changes the display from a moving dot to a bar graph. Current drive to the LEDs is regulated and programmable, eliminating the need for resistors. This feature is one that allows operation of the whole system from less than 3V. LM3914 can also act as a programmer, or sequencer.
NOTE: Kindly compare your original item with the photos provided for the listing to make sure that you are purchasing the correct part. we don't provide technical assistance please make sure you are familiar with the product before purchasing. apologize in advance.
