36pcs Wire Connector, 1 Conductor Compact Splicing Connector for Circuit Inline 24-12 AWG

KWD 6.500
Brand
UOHGDPY
– 1 +

Special Features

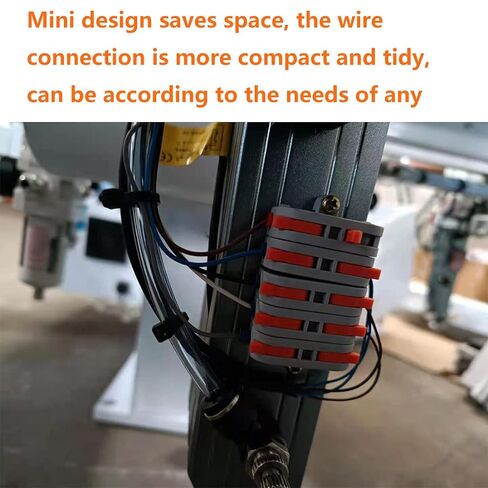

  • 1.★ Don't take up space —UOHGDPY's latest patented design, micro connector, small in size, only two-thirds the size of the same type of connector, doesn't take up space and has a good advantage in narrow wire connection space.
  • 2.★Safty Shell— the Lever-Nuts are made of high quality German Bayer PC material with long life, corrosion resistance, aging resistance, high pressure resistance and insulation flame retardant advantages
  • 3.★Practical and reusable — The lever nut kit can be used for motor, electrical control, power supply, home appliance, lighting, machinery and other wire connection parts. Every junction independent shrapnel, different wire managed separately, improving safety performance and product quality.

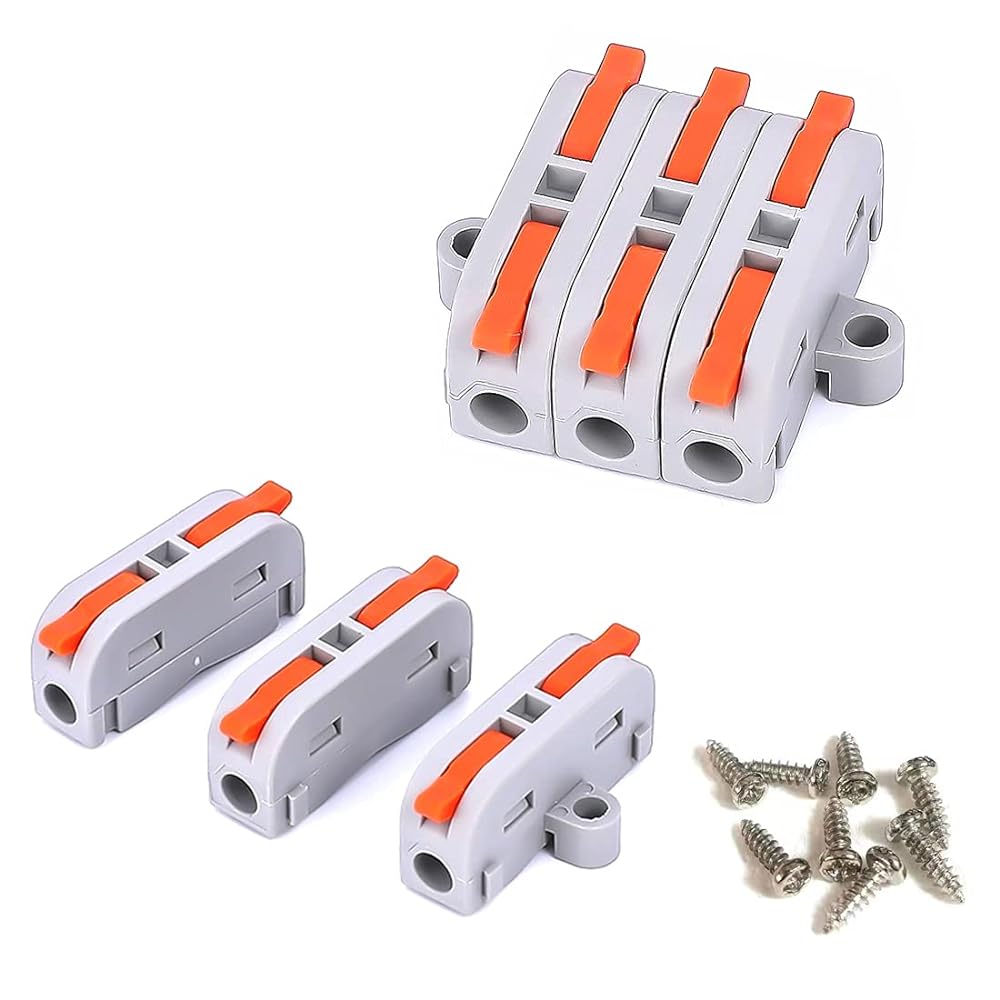

  • 4.★ARBITRARY COMBINATION — Each wire connector is provided with 2 slots and 2 clasps on two sides, which can be flexibly assembled or disassembled into 2,3,4,6 bit (way) butt connectors as needed. Don't worry about buying mismatched terminal connectors

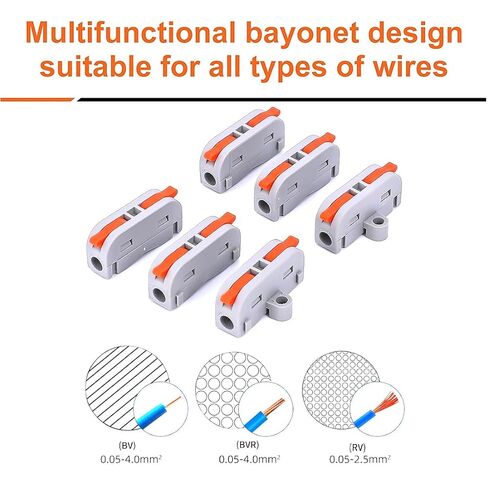

  • 5.★Universal Compatibility— This Wire Connector is suitable for solid and flexible wire. Connect any combination of solid, stranded, and flexible copper wires. Suit for solid wire 0.08-4.0mm² /28-12 AWG, flexible wire 0.5-2.5mm² /20-14 AWG.

Description

Product Features:
Built-in test point.
No need for tools.
Plug and play quick connecting.
Maintenance-free connection.
Low installed cost and safe operation.
Different wire sizes and types can be combined in one connector.
Corrosion resistance, high-temperature resistance and aging resistance.
Reusable conductor compact wire connector.

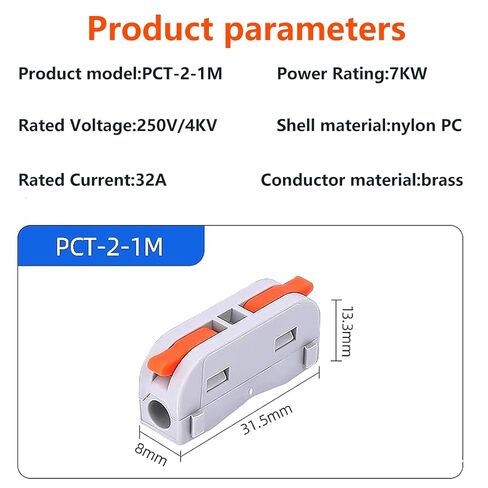

Product Specification:

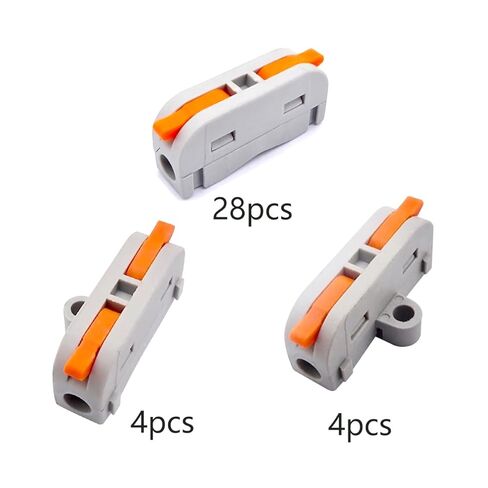

Including 4pcs left Lever-Nut,4pcs right Lever-Nut and 28pcs Lever-Nut for DIY splicing.Use thick 99.99% content copper, Special surface plating to prevent oxidation and with good conductivity, low resistivity
Wire Cross section: 0.2~4mm²/28~12AWG (solid), 0.2~4mm²/28 ~12AWG(stranded),0.2~2.5mm²/28~14AWG (flexible)
Rated Voltage: 250V
Rated Current: 32A
Max Operating Temperature: 95℃
Spring: Nickel Chromium Alloy Steel
Dimension: 31.5(L)* 8.0 (W)* 13.5(H)mm
How to Use?
1.Open the housing of wire to 0.39inch(10mm).
2.Push the orange lever to 90° and insert the wire lead.
3.Press the lever to close the clamp.
4.Check the test hole whether it is connected correctly.
