MT21 Bluetooth Power Amplifier Board, 2.1 Channel DC 12V to 24V HiFi DIY Audio Power Amp Module for 20 to 100W 4 to 8? Speakers

KWD 11
Brand
Goshyda
Category
Home Theater
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • APPLICABLE: Bluetooth 5.0 power amplifier board with 36x25x10mm / 1.42x0.98x0.39in heatsink, applicable power supply DC12‑24V 5A and above (24V battery pack cannot connected), applicable speakers 20-100W, 4-8 Ω.
  • CAUTIONS: Amplifier board will only have enough output power if the sound input is sufficient and the power supply voltage and current are sufficient. The higher the power supply voltage, the higher the output power, the smaller the speaker impedance, the higher the output power. Please make sure the power of the power supply is greater than the actual power of the amplifier!
  • STABLE PERFORMANCE: Bluetooth digital power amplifier module features Bluetooth 5.0 with a transmission distance of up to 49 feet (unobstructed). Also, this amplifier board has a 3.5mm AUX sound input.
  • DC CONVERTER PLUG: Amplifier board can use commercially available DC adapter (plug specification 5.5mmx2.1mm) to basically meet the needs of MT21 Bluetooth power amplifier board. If your existing DC power plug is not 5.5mmx2.1mm, there is no problem, because we include a DC adapter in the product.
  • MULTIPLE : Bluetooth digital power amplifier module has multiple mechanisms to ensure its safe operation. It has short circuit , over current, overheat and anti reverse connection .

Description

Spec:
Item Type: Bluetooth Power Amplifier Board
Material: PCB
Radiator Size: Approx. 36x25x10mm / 1.42x0.98x0.39in
Bluetooth Version: 5.0(Unobstructed, 15m/49.2ft)
Input Mode: Aux, Bluetooth
Number of Channels: 2.1 Channel
Input Sensitivity: 500mV
Power Amplifier Chip: Domestic Power Amplifier Chip
Adaptation Speaker: 20-100W, 4-8Q
Mechanism: Anti Reverse Connection, Overheating and Overcurrent, Short Circuit
Applicable Power Supply: DC 12~24V 5A or More (Can Not Connected to 24V Battery Pack)
Output Power: Left and Right Channel

Packing list:

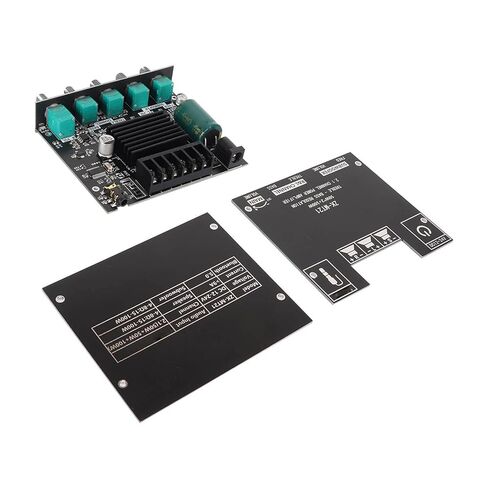

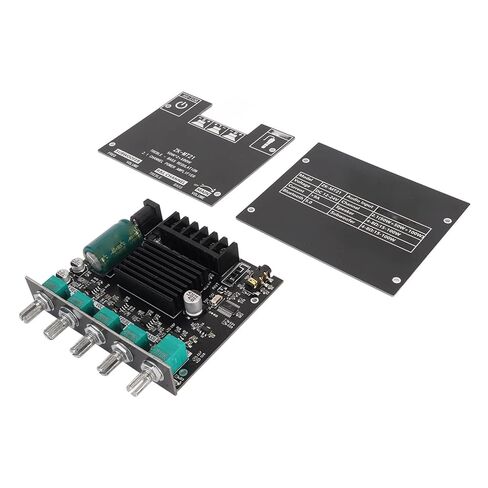

1 x Bluetooth Power Amplifier Board
2 x Cover Plate
9 x Screw
8 x Copper Column Assembly
5 x Knob
1 x Screwdriver
1 Adapter
