Chrome Steel Material: Deep groove ball bearings are made of quality chrome steel with excellent strength, hardness, wear resistance and corrosion resistance. It can withstand significant radial and axial loads, providing reliable support in a variety of applications.
Features: This ball bearing has a P6 (ABEC3) accuracy class and is suitable for most general purposes. Z2 noise level produces low noise during operation and is suitable for applications requiring a quiet working environment.
C3 Clearance Grade: The deep groove ball bearings have a C3 clearance grade, which means that they have large internal clearances and are suitable for applications in high-speed operation and high-temperature environments. They can provide better thermal expansion compensation and lower friction.
Wide Application: Widely used in various mechanical equipment and precision instruments, such as motors, mold manufacturing, automation equipment, etc. Due to its C3 clearance rating, the bearing is also particularly suitable for applications in high-speed rotation and high-temperature environments, such as wind turbines, automotive transmission systems, etc.
Selecting Guide:
Open Type (No Designation Suffix) - Suitable for high-speed and even very high-speed operation.
Shielded (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than metal shield bearings
Specification:
Model: 6303
Material: Chrome Steel (GCr15)
Cage Material: Metal
Dimension: 17x47x14mm/0.67"x1.85"x0.55"(Inner Dia*Outer Dia*T)

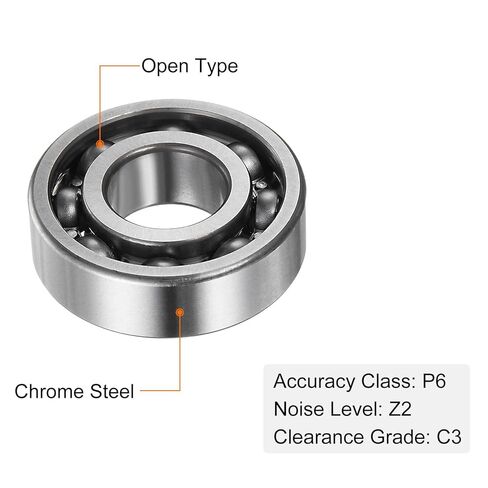

Accuracy Class: P6(ABEC3)
Noise Level: Z2
Clearance Grade: C3
Package Content: 1pcs x Deep Groove Ball Bearings
