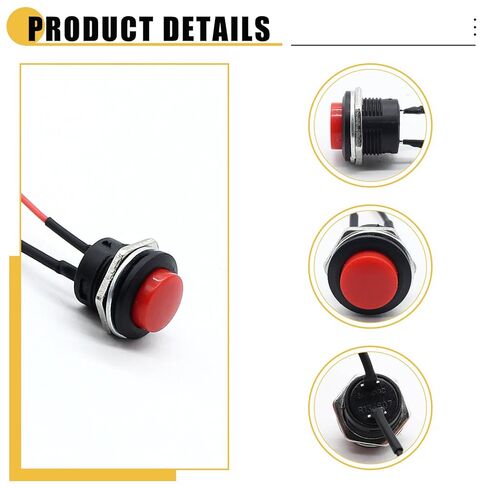

10Pcs Round Plastic Momentary Push Button Switch,16mm ON Off 2 Pin Mini Self-Reset Momentary Switch with Pre-soldered Wire, SPST AC250V/3A AC125V/6A (5Pcs Red and 5Pcs Black)

KWD 4.500
Brand
Unlorspy
Weight
71 g
ColorRed+Black
– 1 +

Special Features

  • 【What Will You Get】: 10 x Momentary Push Button Switch with Pre-soldered Wires (5pcs Red and 5pcs Blue). Total height of the switch :19mm/0.75", the distance between the two pins: 8mm/0.31", Mounting Hole Diameter:15mm/0.6", length of the prewelding wire: 97mm/3.81". Rated voltage and current: AC250V/3A and AC125V/6A
  • 【Unique Design】 : The Round Plastic Push Button Switch adopts the instantaneous single-pole single-throw design. The design of automatic reset. Pressing the switch device will start to enter the working state, and loosening the switch will stop working.
  • 【High-Quality Materials】 : The shell of this 16mm Round Momentary Push Button Switch is designed with high-quality plastic, heat resistance and aging resistance, good insulation, double wire contacts set at the bottom and pre-wired design, good contact, reliable and durable.
  • 【Wide Range Of Uses】: These Round Plastic Self-Reset Momentary switches are used primarily for drinking fountains, coffee machines, treadmills or for refitting vessels, vehicles and other equipment.
  • 【Worry-Free After-Sales】: If you have any questions about our products, please feel free to contact us. We are sure to give you a satisfactory solution. Enjoy your shopping!

Description

Product specification:
Color: Blue + Red
Material: Plastic + Metal
Installation hole: about 15mm/0.6".
Length of welding wire: 97mm/3.81".
Rated voltage: 250V/125V
Rated current: 3A/6A
Contact type: SPST.
Number of pins: 2
Action:Momentary Lockless.
Contact :1 NO(Normally Open)

Package includes: 10 Pcs Round Momentary Push Button Switch

Product characteristics :
(1) Light weight, good insulation, sensitive contacts.
(2) Simple design, safe and reliable, easy to use.

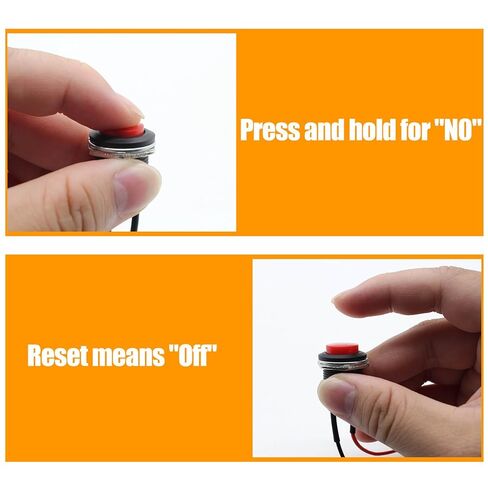

(3) Automatic reset switch, press "NO", release "Off".
(4) With prewiring design, easy to install.

Warm reminder:
1. All our products are measured manually, there may be 1-2mm error, please understand.
2. Due to the different display, the product color may be slightly different, please understand.
