Parameter:
Measuring range:
Red DC4.50-30.0V,
Green DC 4.70-30.0V,
Blue DC5.00-30.0V
Power supply range: No need to supply power separately, directly use the measured voltage as the power supply, the scope is the same as above
The highest input: DC30.0V. Note: The input voltage is higher than 30V and may be permanently damaged!
Allowable error: +/- 1%; (the error is ±0.3V when it is greater than or equal to 10V; the error is ±0.10 when it is less than 10V)
Input impedance: > 100K ohms
Working current:
Red Green Blue Refresh rate: about 300mS once
Display mode: three 0.36" LED digital tube
Display color: red, green, blue
Lead length: 15cm
Dimensions: 23 x 15 x 10 mm, length X width X thickness (without mounting ears);
With mounting ear length: 33mm
Mounting hole: hole distance: 28mm, aperture: 2.8mm
Net weight: 5g
Working temperature: -10 ° C ~ 65 ° C

Package Included:

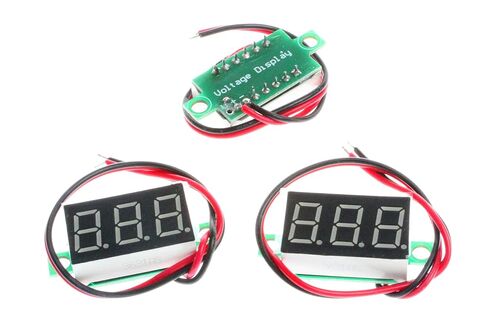

3Pcs NOYITO 0.36" LED Ultra-small DC 4.50-30V Digital Voltmeter
