Electric Display, Electric LED Display Control Panel 36V 48V S810 LED Display Meter for Electric 5 Pin Ordinary Interface Riding

KWD 7.500
Brand
SPYMINNPOO
Category
Bicycles
Weight
143 g
– 1 +

Special Features

  • [Plastic Material]: Our electric bicycle display adopts a plastic shell, with fine workmanship, good toughness, and good waterproof performance, which provides better for the internal circuit and makes it more .
  • [Sensitive and Fast]: The LED dashboard has sensitive buttons, convenient , intelligent power display, real battery power, real-time recording of power consumption, and guaranteed riding mileage.
  • [Gear Memory Function]: The high, medium and low gear analog torques thrust comes from the switch gear and gear indication display, with gear memory function, and the gear state can be automatically restored after power-on.
  • [Custom Settings]: The electric bicycle display adopts five-wire digital communication and has multi-function self-tuning function parameters. Users can customize settings according to different , such as motor parameters, speed parameters, and speed parameters.

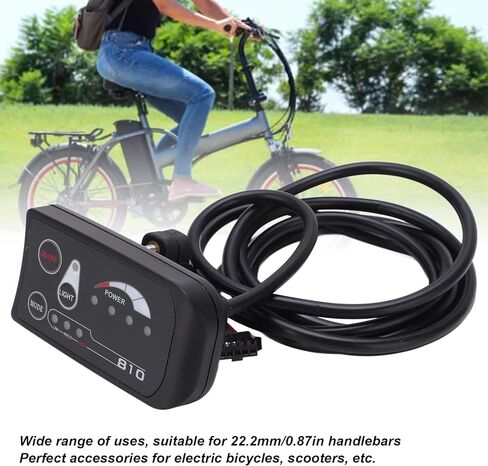

  • [Wide Range of Applications]: The electric bicycle display is compatible with 36V and 48V voltage, suitable for 22.2mm handlebars, perfect accessories for electric bicycles, scooters, etc., suitable for JN controllers and Pasion electric bicycle motor kits.

Description

How to Use:
1. Wiring instructions for the connection end of the controller: red instrument power line, blue controller power control line, black instrument ground line, green instrument data receiving line, yellow instrument data sending line.
2. Operation instruction: the function can be realized by connecting the meter socket of the display screen to the meter interface of the controller.

Specification:

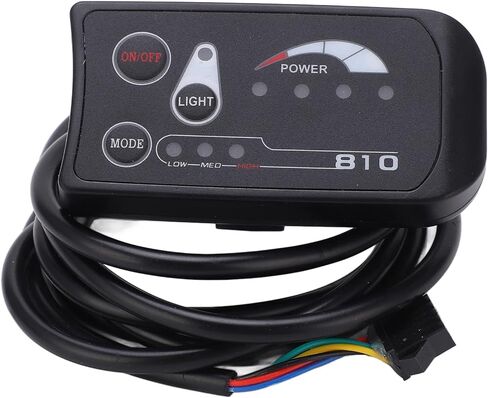

Item Type: LED S810 Electric Bicycle Display
Material: Plastic
Color: As Pictures Shown
Weight: Approx. 143g/5.0oz
Display Size: Approx. 82x42mm / 3.2x1.7in, 159.5cm/62.8in Wire Length Without Connector
Applicable Handlebar Installation: 22.2mm/0.87in Diameter Handlebar
Voltage: 36V 48V
Interface: 5 pin Ordinary Interface
Application: for JN Controller and for Pasion Electric Bike Motor Kit

Package List:
1 x S810 Display
1 x Manual

Note:
1. S810 display needs to be used in conjunction with products that are consistent with the communication protocol.2. Please allow 1‑3mm error due to manual measurement. Thanks for your understanding.
