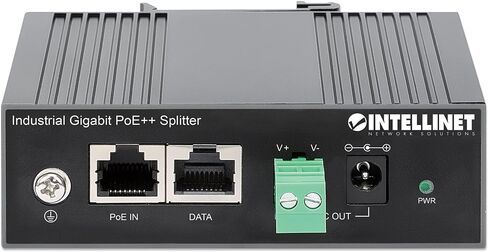

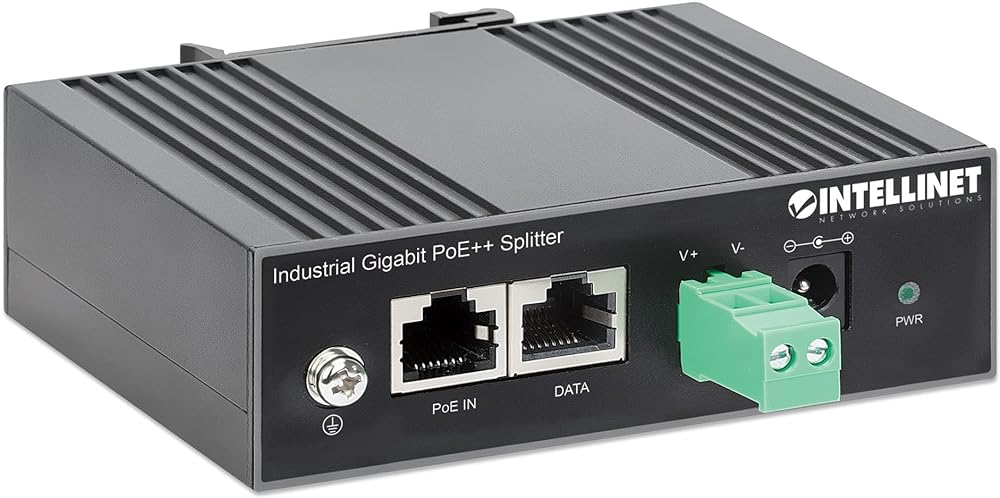

Intellinet Industrial PoE++ Splitter – 60W Input, Two 12V DC Output via 2-Pin Terminal Block or DC Jack, IP30-Rated Metal Housing, DIN Rail Mount, 3 Yr Mfg Warranty – 508940
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features
POWER OVER ETHERNET FOR NON-POE DEVICES: This splitter can take an IEEE 802.3bt ( 4PPoE ) /at/af Gigabit connection from a PoE Switch or injector and "split" it into two separate outputs: a DC output with power up to 51 W (12 V / 4.25 A) through either a barrel-plug socket (in the style of a power adapter / adaptor) or a terminal-block, and a 10/100/1000 Mbps Ethernet data link.
TOUGH ENOUGH FOR HARSH ENVIRONMENTS: an IP30 rating provides protection from tools and small wires greater than 2.5 millimeters; splitter supports temperatures from -40 - 167°F; DIN-rail mounting option for an easy fit in factories, plants, warehouses and other industrial environments.
POWER & SPEED ABILITY: The total power available ( budget ) for the splitter depends on the Power Sourcing Equipment ( PSE ) device; max power output is 51 W from a max. 60 W IEEE 802.3bt Ultra PoE ( PoE ++ ) connection; data extender function supports tri-speed connections from the unit up to 328 ft. (100 m) to a non-PoE device at Classic-, Fast-, or Gigabit-Ethernet speeds through the RJ45 DATA port.
GREAT DEVICE PROTECTION: Splitter protects devices from short-circuits, overloads, over-current and overheating; ESD protection up to 8 kV (air) and 6 kV (contact); port surge protection up to 2 kV.
EXCELLENT Mfg WARRANTY & WHAT'S INCLUDED: 3-Year manufacturer Warranty; Includes Industrial Gigabit PoE++ Splitter, DIN-Rail bracket and Instructions.
Description
Need power but don't have an outlet? Take it from your PoE network with the Intellinet Industrial Gigabit PoE++ Splitter. With a simple Ethernet cable connected to your PoE++ Switch or injector, this Splitter can give up to 51 W to a non-PoE device in tough or industrial environments via your choice of output — a 2-pin terminal block or a DC jack — and still provide a gigabit network connection. It's a great choice for non-PoE cameras, laptops, and other devices that require a power adapter, and it's cheaper in both time and money than hiring an electrician.
