Advantage:
Low Temperature, safe & Durable
Low Power, Environmental Protection
Special photoelectricity control, three steps current application
MOV Provides Reverse Current Protection
Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt
Double protection for loading current
Auto-relock if no Action within 5 secs
Certificate: CE&MA
Photoelectricity Control, Low Temperature
A: The Low Current is Changed immediately
B: When door frame doesn't coincide with door leaf, door leaf against the bolt, then the electric bolt will start the low-power function to bring low temperature
C:The Photoelectricity Control Technology, prevent the machanical defect

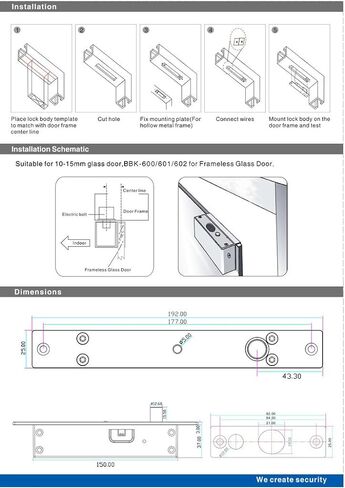

Specifications:
Fail Safe: Unlocked when power is removed
Lock Body: 192Lx25WX37H(mm) / 7.56Lx0.98WX1.46H(in)
Magnetic Plate: 90Lx25Wx2H(mm) / 3.54Lx0.98Wx0.08H(in)
Bolt: 16mm/0.63in DIA, stainless steel 16mm/0.51in throw
Voltage: DC12V
Start Current: 900mA
Standby Current: 80mA
Solid Bolt Holding Force: 1000Kg / 2204lb
Lock cylinder material: Stainless Steel
Face place material: kirsite
Suitable For: Wooden Door, Glass Door, Metal Door, PVC door
LED: Light on indicates locked, light off indicates unlocked
Autolock Time Delay: 0/3/6/9sec
Operating temp: -10℃~55℃(14℉~131F)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 operations
Door statue signal output contact: NO/COM
Induction Distance: Within 8mm/0.31in
Weight: 0.68kg / 1.5lb
Package:
1 x Electric Lock
1 x User manual
1 x Screws and Installation Kit
