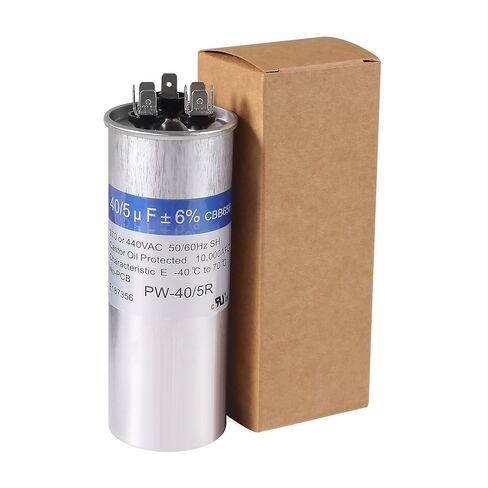

2 PACK 40+5 MFD Capacitor ±5% 40/5 uF 370/440 VAC CBB65 Round Dual Run Capacitor for Air Conditioner,Heat Pump Condenser,Fan Start

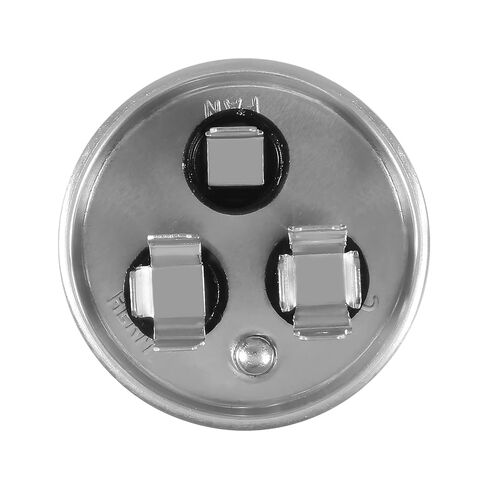

The 40/5 uf round dual run capacitor for ac combines two capacitors into one unit. AC capacitor will power a compressor motor and a fan motor, and has three terminals on the top. They are labeled "HERM" for the compressor motor, "FAN" for the fan, and "C" for the common line.

Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 40+5uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Diameter Height
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
