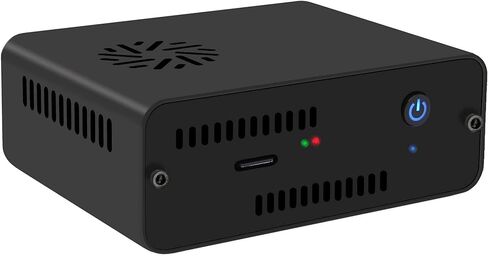

Geekworm NASPi V2.0 2.5 inch SATA HDD/SSD NAS Storage Kit with Safe Shutdown & Auto Power On Function for Raspberry Pi 4 Model B(Not Include Raspberry Pi 4)

Geekworm NASPi offering an easy and fast way to create your home media center and building NAS or Web server for your raspberry pi 4 with a single 2.5 inch SATA HDD/SSD. For the Simplified version with full size HDMI, refer to NASPi-Lite(ASIN:B09J8B7G3W); Dual SATA refer to NASPi Gemini 2.5(ASIN:B07VXF2HJG)
NASPi is composed of three parts: X823 storage shield, X-C1 adapter board, heat dissipation system(include X823-A3 metal fan bracket and 4010 PWM fan), and they will be packed into a ALU-case(Raspberry Pi 4 Case) to get a complete NASPi; (X-C1 V2.0 support auto power on function, X-C1 V1.3 doesn't)
How to Power NASPi: 5Vdc +/-5% , ≥4A (Via Type-C Port of X-C1); Recommend to use Geekworm UL listed 5V 4A Type-C power adapter (ASIN:B09J856PND).
SSD thickness description: NASPi supports SSD with a thickness not exceeding 9.8mm, most 2.5" HDD/SSD on the market are only 7mm thickness.
Button switch operation: Press button 1~2 seconds to reboot, 3 seconds to safe shutdown, 8 seconds to force shutdown (need to install shell script firstly)
For Raspberry Pi CM4 NAS, please refer to: NASPi CM4-M2(ASIN:B0C7QNSNC8) support a M2 NVMe Key-M SSD or M2 SATA Key-B SSD; NASPi CM4-2.5(ASIN:B0C7QMTYD5) support a single 2.5 inch SATA HDD/SSD.
