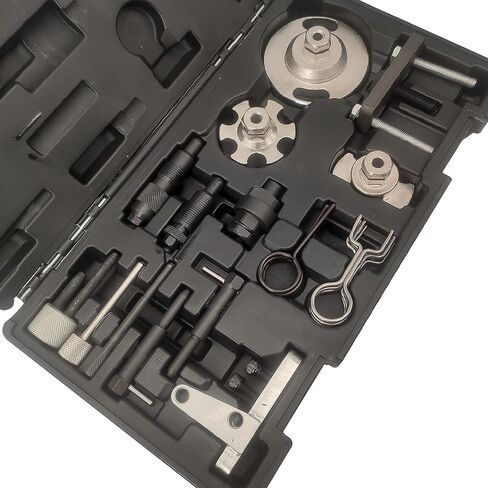

Diesel Engine Camshaft Alignment Locking Timing Tool Compatible with VW Audi A6L 2.7 ,Q7 3.0TDi,4.0 4.2Tdi V8 CRD A4,A5,A6,A8,Q5,Q7 2.0D 2.7D 3.0TDI Engine.
Because there are many tools in this kit, the following are all alternative numbers and uses, I hope it can be helpful
T40058: Crankshaft Socket, used to rotate the crankshaft into place for alignment
T40060: Camshaft adjustment pin, used to fix the camshaft when adjusting the valve timing.
T40061: Camshaft correction tool, used to correct the position of the camshaft when setting the valve timing
T40062: Sprocket tensioner, used to tension the sprocket when setting the valve timing.
T40049: Crankshaft key Used to turn the crankshaft when removing and installing the camshaft timing chain.
T40071: Chain Tensioner Locking Pin, used to fix the chain tensioner in the pressing position.
T40064: Puller-Pulley, used to remove the toothed pulley of the high pressure pump
T40135: High-pressure pump sprocket locking tool, used to fix the high-pressure pump sprocket when replacing the toothed belt on the 6-cylinder
3242: Crankshaft bracket, used to fix the crankshaft on the TDC Remove and install the toothed belt and flywheel/drive plate
3359: Diesel injection pump lock pin, used to lock the fuel injection pump when removing and installing the toothed belt
T40237: Crankshaft lock pin. Due to the position of the front axle, the lock pin 3242 is too long. T40237 will replace 3242.
T40245: Lock pin, used for locking sprocket on high pressure pump.
T40246: chain tensioner mounting bracket, fixed chain tensioner
