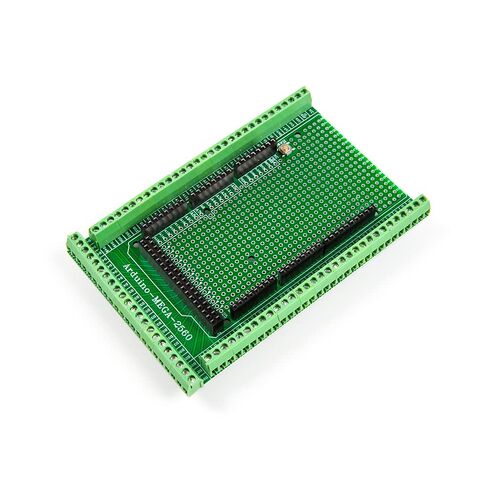

Assembled Prototype Screw Terminal Block Shield Board Kit for Arduino MEGA 2560 R3

KWD 6
Brand
Jienk
Weight
82 g
– 1 +

Special Features

  • Assembled prototype screw terminal block shield board kit for Arduino MEGA-2560 R3. It contains Prototype PCB, Terminal Blocks, Female Header Sockets.
  • Size 120mm x 78mm. Pads pitch 2.54mm / 0.1", hole diameter 0.8mm.
  • Terminal Block: Pitch 3.5mm / 0.138" mini terminal blocks, total 85 pins(3pole x25pcs, 2pole x5pcs ). Wire range 26~16AWG, strip length 5mm.
  • Female Header Socket: Pitch 0.1"/2.54mm, pin length 15mm / 0.59" Single row 10pin x1pcs, singal row 8pin x 5pcs, dual row 18pin x1pcs.
  • The terminal block shield board kit is made of FR-4 glass fiber PCB , dual copper layers, screws M2 steel, pin header and cage brass. Using the shield allows you to make secure connections for all the wires and allows lots of space to plug in an addition shield on top, like a LCD touchscreen.
