3660 3600kv Brushless Motor ESC/Waterproof Sensorless Motor with 80A ESC and Programming Card Combo/Output 5.8V/5A/for 1/10 1/8 RC Car Truck

KWD 37
– 1 +

Special Features

  • Motor ESC combination：Complete 3660 3600KV sensorless brushless motor with 80A ESC and programming card, no need for you to match different motors and ESCs anymore, save your time. help your RC truck quickly adjust different modes and speed
  • Material: 4-pole 12-slot high-torque motor adopts 5.00mm alloy steel shaft, 6CNC processing 6061-T high hardness aluminum CNC shell heat sink, high temperature resistant copper wire, 0.2mm silicon steel sheet, with excellent starting and acceleration characteristics, and good insulation quality , Good heat resistance.
  • Widely compatible: 3660 3600KV brushless motor + 80A ESC and programming card kit compatible with 1/10 1/8 RC cars, trucks, off-road vehicles, good speed, sufficient power supply, strong acceleration. Perfect match with 2-3S lithium battery
  • Advantages: The motor adopts a 4-pole rotor design, with strong torque and stable output, high hardness aluminum CNC shell, high temperature resistant copper wire, 0.2mm silicon steel sheet, detachable structure for easy cleaning and maintenance. The ESC is waterproof and dustproof all day long, has strong anti-current capability, excellent heat dissipation, and has multiple protection functions. Built-in switch mode BEC 5.8V/5A, compatible with high torque
  • Multiple protection functions: The upgraded 3600kv motor built-in temperature sensor and ESC can realize motor overheating protection, lithium or nickel battery low-voltage cut-off protection/ESC overheating protection/throttle signal loss protection/motor blocking protection, which can prevent your The remote control car is overheated and damaged

Description

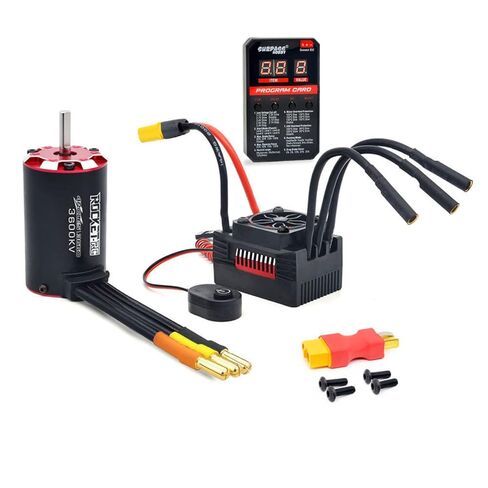

3660 3600KV Brushless Motor and 80A ESC Combo Set and Program Card
Features:
1：4-level 12-slot high-torque motor design, CNC machining billet
2：6061-T6 aluminum heat sink, secondary oxidation treatment, high-end and fine appearance
3：High-purity copper coil, highest efficiency, temperature resistance 180-200 degrees
4：High balance explosion-proof rotor: high smoothness, high accuracy and high speed, dynamic balance control within 10mg，removable/replaceable rotor

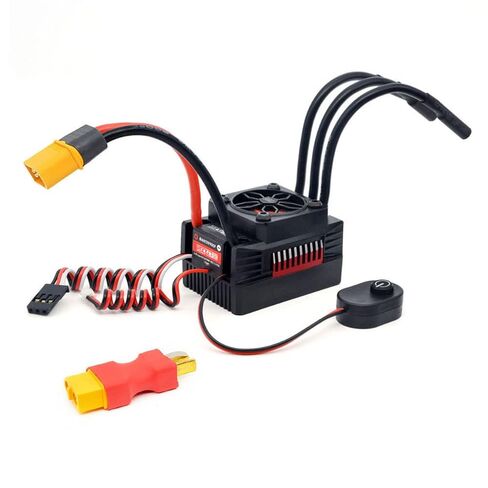

80AWater-proof ESC:
1：ESC is waterproof and dustproof all day long Suitable for all-weather competitions
2：The strong resistant current capability, excellent heat dissipation.
3：Multiple protection features, widely compatible with for 1/10 1/8 RC car
4：Built-in switch mode BEC 5.8V/5A, compatible with high torque
3600KV MotorSpecifications:
Watts: 1300W
Max voltage:
IO :4.8A
Resistance:0.005
Max RPM: 50000
Max Amps: 100A / KV(RPM/Volt): 3600KV
Diameter: 36mm
Length: 60mm
Shaft length: 17mm
Shaft diameter: 5.00mm
Weight: 240g
Plug type: 4mm golden banana plug
ESC specifications
Cont/Burst Current: 80A/480A
Motor Type: Sensorless brushless motor
BEC Output: 5.8V/5A(switch mode)
Battery: 2S -3S battery Lipo/ 6-9cells NiMH
Resistance: 0.0005 ohm
Diamension:50 X 35 X 34mm
Weight: 81g

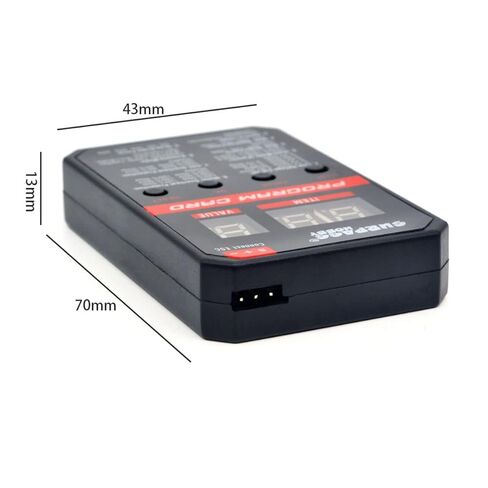

Specifications of RC Programming Card:
This program box is used to program the brushless ESC
Suitable esc: 25A, 35A, 45A, 60A, 80A, 120A ESC
Used with: 1/8,1/10,1/12,1/14,1/16,1/18 rc car
Size: 70x43x13mm
Working voltage/currren: 5-6.5V/100mAh
Package:
1 * 3660 3600kV brushless motor
1 * 80A ESC
1*Progr
1*XT60
