Description:

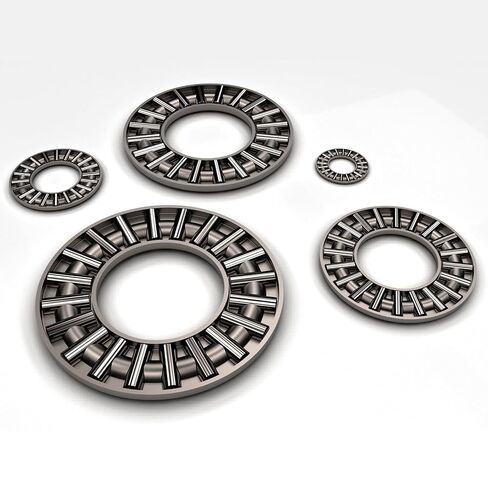

Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
These bearings accommodate heavy axial loads and peak loads due to the small diameter deviation of the rollers within one assembly.
Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.
Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.
Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Specification:

Bearing Model: AXK1024
Bearing Washer Model: AS1024
Needle Roller Material: Chromium Steel (GCr15)
Cage Material: ST13 Steel
Bearing Washer Material: 65Mn Spring Steel
Bore Diameter (d): 10mm
Outside Diameter (D): 24mm
Bearing Thickness (T1): 2mm
Washer Thickness (T2): 1mm (Approx.)

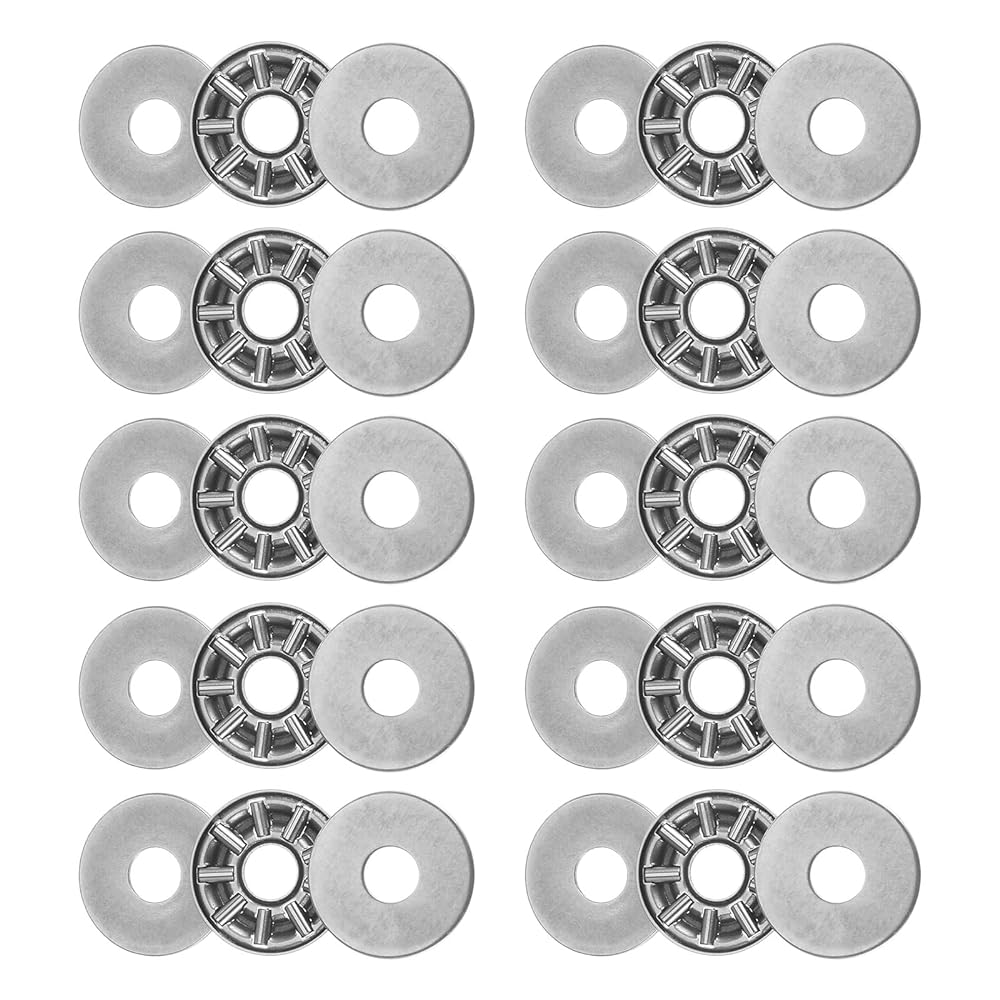

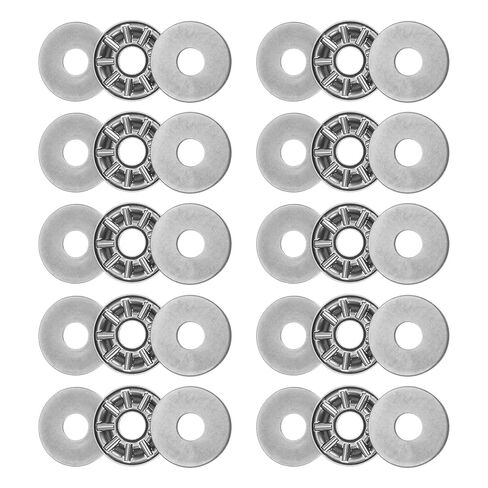

Package Contents:
20 x Bearings
40 x Bearing Washers
