Hegebeck ER20 2mm Spring Collet Chuck

Description

1.These spring collets are made of high quality spring steel, they are stable and practical in performance.

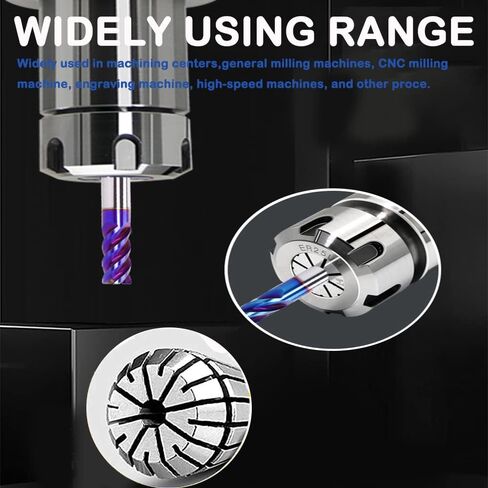

2.Widely used in machining centers,general milling machines, CNC milling machine, engraving machine, high-speed machines, and other proce.
3.This product has Powerful clamping ability,good elasticity, high precision.
4.ER Collet features full length slits, enabling the collet to collapse uniformly to provide a concentric and full 360 degree gripping surface.
5.This collet is a mounted on the drilling machine drill chuck, used for clamping drill, milling cutter, such as parallel shank tools

Technical Parameters:

Material: 65MN Steel

Model: ER20

Clamping Diameter: 2mm / 0.08-inch

Precision: 0.01mm / 0.0004-inch

Outer Diameter(Max): 21mm / 0.83-inch

Total Height: 31.5mm / 1.24-inch

Package Content:

1 x Spring Collet
Note:

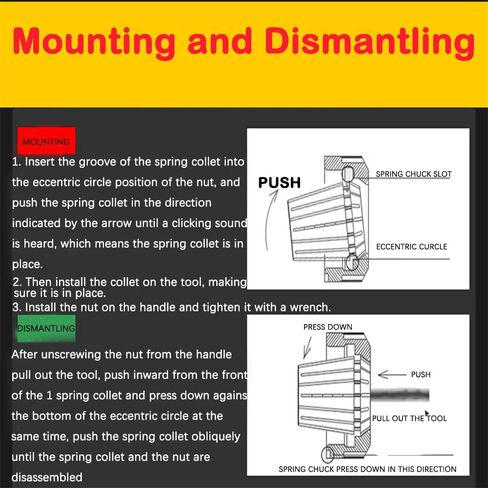

1.Collet must be placed into collet chuck nut before inserting into collet chuck
2.Please check the size and style you need carefully before buying.
3.If you have any question to product, please feel free to contact us.
