Features:
Yellow LED indication, clear port mark The width is only 6.2mm, which saves 60% of installation space Plug-in bridging type.Convenient DIN rail installation Operational frequency can reach to 300Hz.No-abrasion switch output :3-48V DC/100mA Internal input/output polarity circuit.The max electrical isolation is 2.5kVrms

Specification:
Model:MRI-230A48
Input Voltage Range:3.3VDC±10%
Input Current: 6mA
Output Voltage Range: 3-48VDC
Transfer Frequency:300Hz
Switch Electrical Level: "1" (H) ≥80,"0" (L) ≤40%
Max.Sustained current: 100mA
Max. Voltage Drop: ≤0.9V
Input/Output Isolation Voltage: 2.5kV(50Hz,1min)
Ambient Temperature: -20℃~60℃
Operative Standard: IEC60664,EN50178, IEC62103
Applicable Wire: (Rigidity)0.2-2.5mm2,(Flexibility)0.2-2.5mm2,(AWG)24-14
Weight: Approx.31g/1.1oz

Package list:

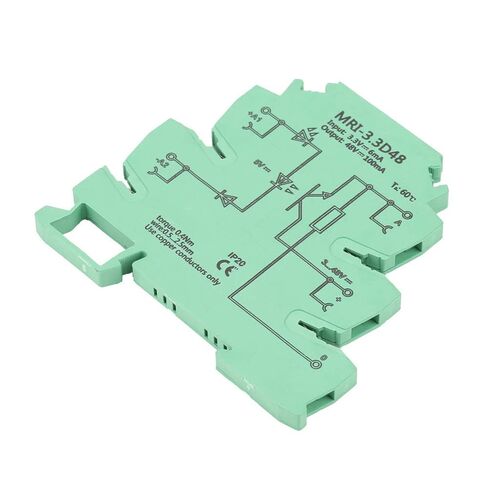

1 x Optocoupler Isolating PLC Relay
