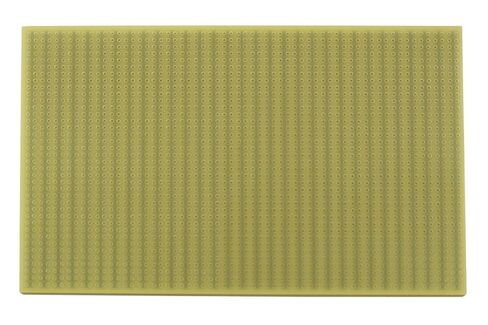

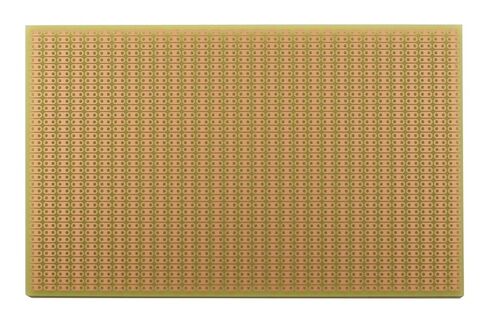

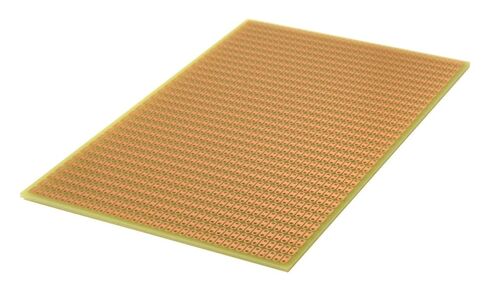

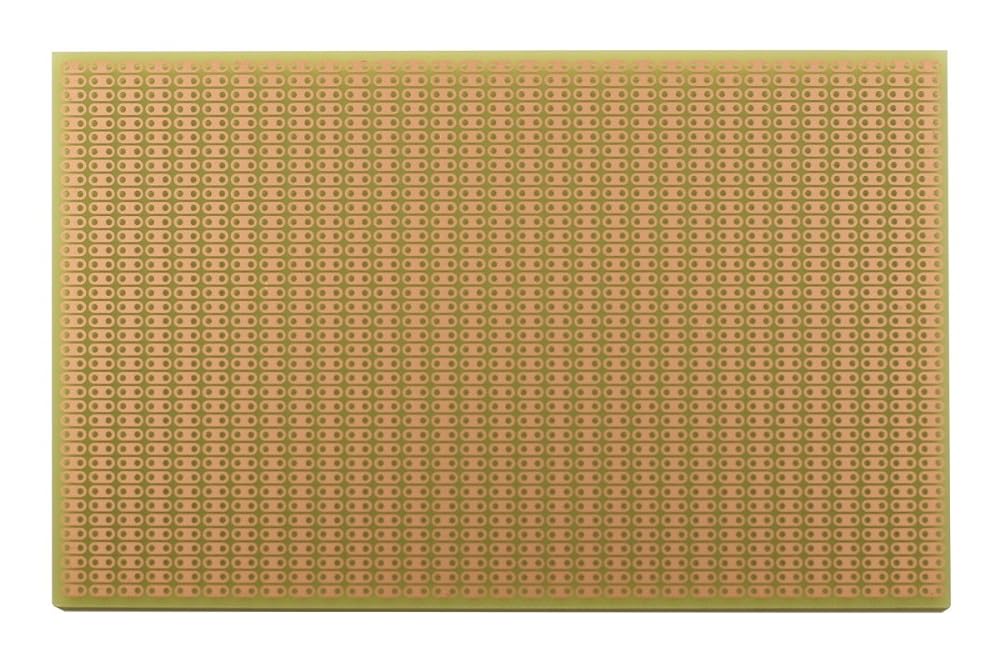

PR2H3U ProtoBoard-2H-3U, 2-Hole Strips, 1 Sided PCB, 3.94 x 6.30 in (100 x 160 mm)

KWD 5
– 1 +

Special Features

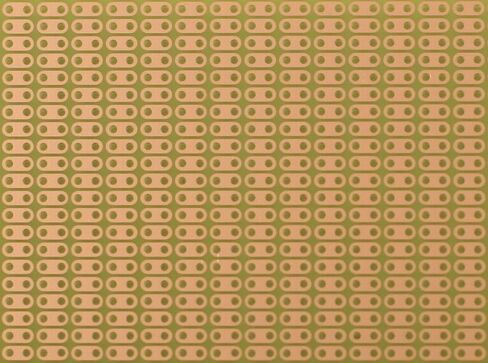

  • Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts.
  • Single-sided high-quality FR4 glass-epoxy circuit board.
  • 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
  • 38 x 62 holes, 0.037" holes are drilled on 0.1" (2.54mm) centers.
  • Standard single height (3U) Eurocard/VME size. 3.9" wide, 6.3" long, 1/16" thick (100 x 160 x 1.6mm). Off-the-shelf 3U size enclosures are available.

Description

The ProtoBoard-2H-3U prototyping circuit board has 2-hole pre-cut strips. The convenient 2-hole ProtoBoard pattern provides an easy way to connect parts while maximizing usable board area. It is good for analog and digital use. It is a single-sided board with holes on 0.1" centers.
