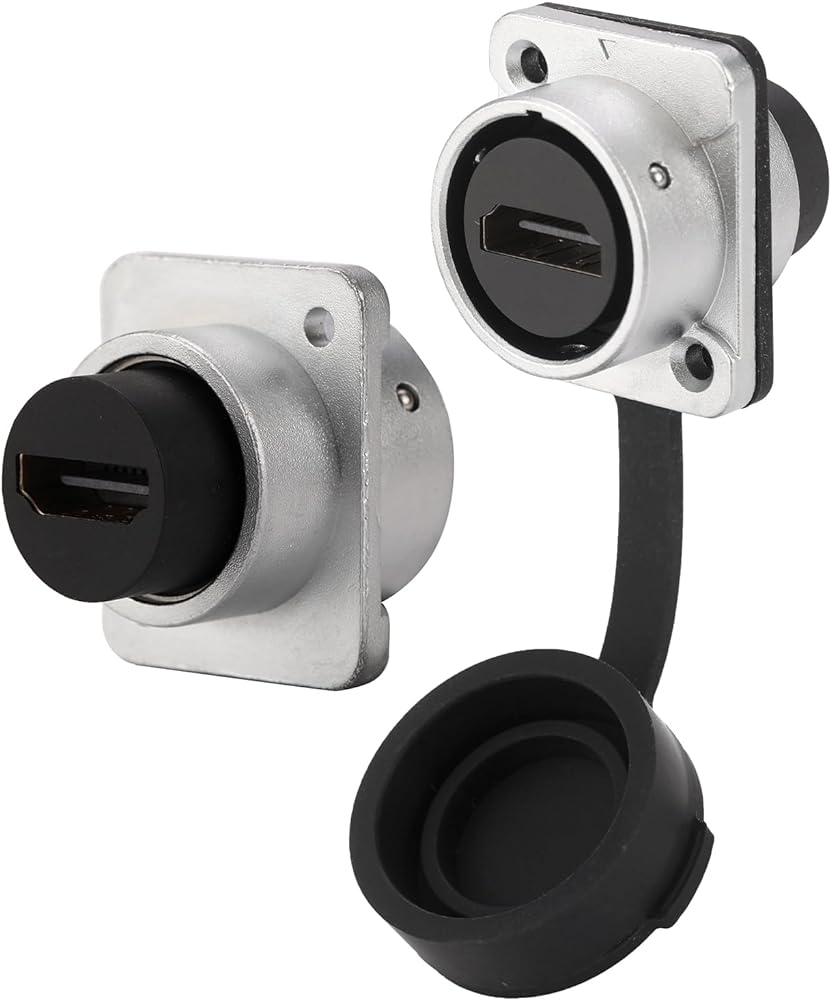

These heavy duty HDMI panel mount connector is a type of HDMI port that can be mounted onto a panel or enclosure, providing easy access for connecting HDMI devices. It supports high-definition video and audio signals up to 4K resolution at 60 frames per second, as well as 3D and deep color modes.
Technical Specifications:
Number of cores: 19 pin
Waterproof rating: None (without waterproof cover), IP67 (with waterproof cover)
Connection type: HDMI (standard port)
Electrical parameters:
Rated current: 1.5A
Rated voltage: 5V
Insulation resistance: ＞10MΩ
Dielectric strength: DC1000V
Contact resistance: ＜10mΩ
Material:

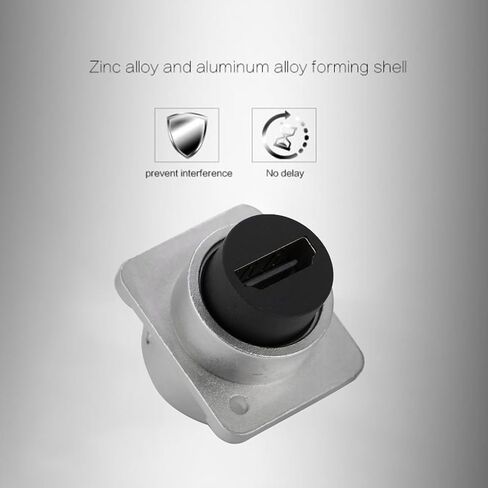

Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Chromium plating
Contact material: Bronze (CuSn8)
Contact pin gold plating: 7µm Au over Ni plating
Insulator material: PBTP 15% GR
Waterproof rubber ring: silica gel
Environmental conditions:
Working temperature: -40～120Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH
Mechanical parameters:
Insertion pressure: less than 10N
Withdrawal pressure: less than 10N
Service life: more than 1000 times
Installation panel thickness: min 2.0mm-max 10mm

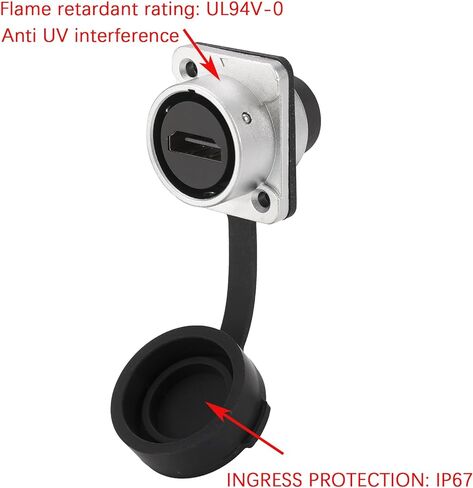

NOTE: The shielded industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP67 Water Protection. It is not waterproof without water/dust cap.
Package includes:
2 x Panel Mounting HDMI Waterproof Connector
2 x Waterproof dustproof cap
