Features:
Digitally programmable frequency and phase
12.65 mW power consumption at 3 V
0 MHz to 12.5 MHz output frequency range
28-bit resolution: 0.1 Hz at 25 MHz reference clock
Sinusoidal, triangular, and square wave outputs
2.3 V to 5.5 V power supply
No external components required
3-wire SPI interface
Extended temperature range: −40°C to +105°C

Power-down option:
Update Rate: 25(max)
VOUT Maximum: 0.65V
VOUT Minimum: 38mV
VOUT Temperature Coefficient: 200°
Input High Voltage: 1.7-2.8V
Input Low Voltage: 0.5-0.7V
Input Current: 10µA
Input Capacitance: 3pF
Operating temperature range is −40°C to +105°C
Typical specifications are at 25°C

Package included:

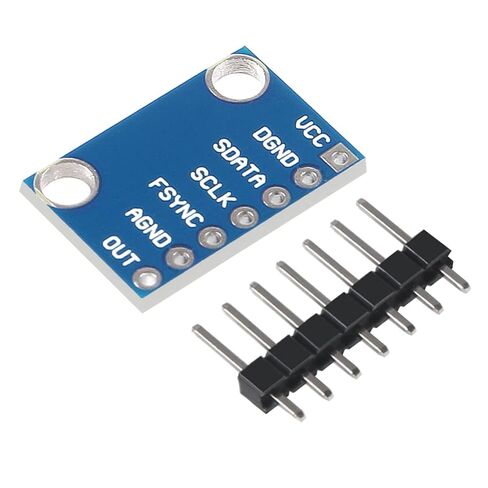

3 x AD9833 programmable module
