Lids soft open gently,Ideal for supporting the lid to keep it open,NOT SOFT CLOSE GAS STRUT!!!
Force:18 Lbs(Per Strut),Length (Center-to-Center):7 inch(180 mm),Compressed Length (Center-to-Center):5.12 inch(130mm)
Support opens lids to a maximum angle of 90 degrees.Available working temperature :-10~50/14-122

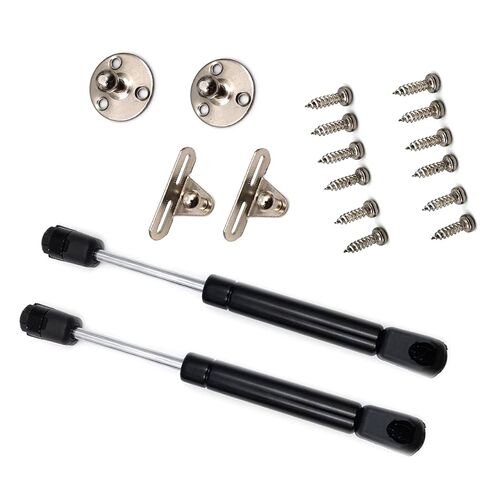

Package included: 2 X 80N 7 Inch Gas Strut and 10 X Screws

HOW TO INSTALL 80N/18LB GAS STRUTS?

1.Determine the center position of the rectangle mounting hardware ,it should be 60 mm/2 3/8 inch from the back of the lid (do this bracket last so you can line up the closer with the side of the cabinet),as distance to the side of the lid, it depends on the thickness of your box/kitchen cabinets,then mark A ,drill 2 holes on the sides of the center point A

2.Determine the center position of the round mounting hardware, it should be 170 mm/6 11/16 inch from the back of the cabinet, and 10 mm/2/5 inch from the top of the cabinet ,then mark B ,drill 3 holes around the center point B

3.Fix the connectors and connect the joints and the strut
