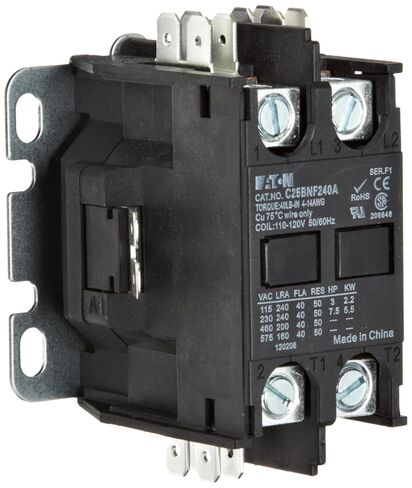

This Eaton C25BNF240A compact definite purpose contactor is rated at 40 amps of inductive current and 50 amps of resistive current, and has a coil rated at 110 to 120 VAC. It is suitable for switching heating, ventilation, air conditioning, construction, and other electrical equipment. This contactor has a maximum rating of 3 hp and 2.2 kilowatts (kW) at 115 VAC, and 7-1/2 hp and 5.5 kW at 230 VAC and an operating temperature range of -13 to +158 degrees F (-25 to +70 degrees C). It is Restriction of Hazardous Substances (RoHS) compliant, Underwriters Laboratories (UL) Listed, and Canadian Standards Association (CSA) certified. This compact definite purpose contactor is suitable for a range of electrical switching applications.
SpecificationsCurrent rating40 amp inductive, 50 amp resistiveCoil voltage110 to 120 VACPower rating at 115 VAC3 hp, 2.2 kWPower rating at 230 VAC7-1/2 hp, 5.5 kWOperating temperature range-13 to +158 degrees F (-25 to +70 degrees C)Dimensions*3.19 x 1.97 x 2.32 inches/81 x 50 x 59 mm (L x W x D)Standards metRoHS compliant, UL Listed, CSA certified
*L is length, the horizontal distance from front to back; W is width, the horizontal distance from left to right; D is depth, the vertical distance from top to bottom.
Eaton manufactures electrical, hydraulic, and mechanical power equipment, including the Moeller brand, and was founded in 1911 and is headquartered in Dublin, Ireland.
