Description:
High quality, compact structure, uses reflective IR to sense the presence of objects
luminous flux from an object
Consists of phototransistors
Snap-in structure for PCB mounting
Plastic polycarbonate housing construction prevents crosstalk

Features:
Position sensor for shaft encoder
Detection of reflective materials, e.g. paper, magnetic tape
Limit switch for mechanical movement in VCR
General use - where space is limited
Specifications: Sensing Distance: 12mm
Operating Reverse Voltage: 5V
Forward Current: 60mA
Foward Surge Current: 3A
Emitter Power Dissipation: 100mW
Collector Emitter Voltage: 70V
Emitter Collector Voltage: 5V
Collector Current: 100mA
Detector Power Dissipation: 100mW
Sensor Total Power Dissipation: 200mW
Sensing Method: Reflective
Wavelength: 950 mm
Size: 10.2 x 5.8 x 7mm/ 0.4 x 0.23 x 0.28 inch
Operating Temperature: -25℃ ~ +85℃

Package include:

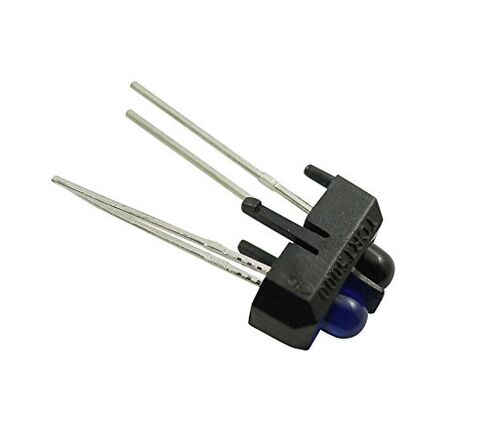

30 x TCRT5000 Reflected Light Sensor Infrared IR Switch
