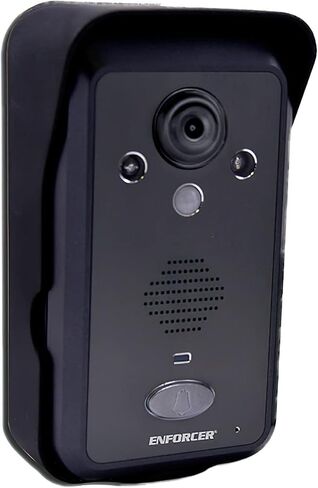

Seco-Larm DP-266-CAQ Enforcer Additional Color Video Phone Camera for DP-266-1C7Q, Built-in IR LEDs for Nighttime Use, 9-16 VAC/5-16 VDC, PIR Sensor, 640 TV Lines Resolution, 2mm Lens

Additional Camera for the DP-266-1C7Q Wireless Video Door Phone

Key Features:
- Camera has built-in IR LEDs for nighttime use
- Powered by 9~16 VAC/5~16 VDC
- Includes a built-in PIR sensor that activates the camera and takes photos of the visitor when they approach
- Adjustable camera pan and tilt angle—up to 20° from centerline in any direction—to allow for mounting variations

Specifications:
- Type: Color camera
- Chip: CMOS
- Resolution: 640 TV Lines
- Lens: 2mm
- Field of view: 170°
- Camera angle adjustment: Up to 20° any direction
- Operating voltage: 9~16 VAC / 5~16 VDC
- Relock delay: 3/6/8 Seconds
- Relay output: 3A@24VAC/24VDC
- Current draw: Active: 300mA@12VDC, Standby: 15mA@12VDC
- Battery life: Active: ~7 hours, Standby: ~60 Days
- IR LED Range: 5' (1.5m)
- IR LED Frequency: 940nm
- PIR Detection range: 9' (3m)
- PIR Detection angle: 60°
- Dimensions (with bracket): 3.12 x 5.68 x 1.93 inches
- Weight: 0.26 pounds
