Special Features

  • Dual run circular start capacitor
  • Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
  • Environmental friendly vegetable oil filled,Cylindrical aluminum outer shell, With pressure-isolation explosion-proof device.
  • Rated voltage: 370V / 440VAC，Capacitance tolerance: ± 6%，Allowable working temperature: -40 ℃ to 70 ℃.
  • Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
  • Replacement for S1-02425033700 , P291-6053RS , C3605R , 27L954 , TRCD605 , 97F9816 , PRCFD605A , Z97F9897 , 97F9897 , C4605R , CPT00691, HCKS600D050R440Z , TP-CAP-60/5/440R , TT-CAP-60/5/440 , B9457-7500 .

Description

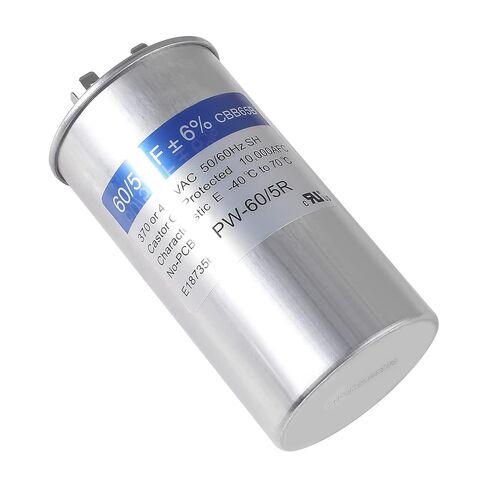

Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 60+5uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Diameter Height
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉

Package： 2 Pack 60+5 uF ±6% 60/5 MFD 370/440 VAC CBB65 Dual Run Start Round Capacitor
