Advantage:
Designed for Metal Frame drill a hole, then install it directly
Testing to 1000000 cycles
High-Temperature Painted, Duable and Beatiful Artical
CE Certificate by European Union, MA Certificate by China Public Security office
Specifications:
Fail safe, NC mode (Unlocked when power is removed)

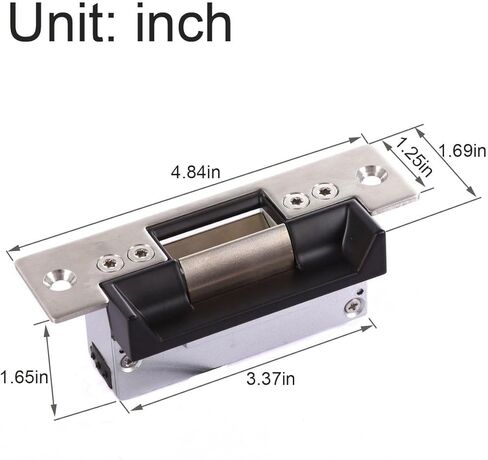

Case Size (LxWxD): 85.5x25.5x39.5mm (3-23/64" x 1" x 1-9/16")
Faceplate Size (LxWxD): 123x31.7mm (4-27/32" x 1-1/4")
Strike Opening(LxWxD): 36.6x16x16.6(mm) (1-7/16" x 5/8" x 21/32”)
Latchbolt Projection: 19.1mm (3/4")
Face Plate Material: 304 Stainless Steel force structure
Lock Material: Zinc alloy (baking varnish by high temperature)
Holding Force: 1000kg
Voltage: 12VDC
Current: 320mA
Suitable For: Wooden Door, Metal Door, PVC Door
Surface Temperature: Within +20℃ / 68℉
Suitable Temperature: -10℃~+55℃(14℉-131F)
Operating Humidity: 0~90%(non-condensing)
Face plate Housing: Painted Steel
Lock Tongue: Surface by coating nickel
Function: Built-out MOV
Weight: 0.34kg / 0.75lb
Package include:
1 x Electric Lock
1 x Manual
Attention:
Before placing order, please check the size of your door's frame to avoid wrong purchase

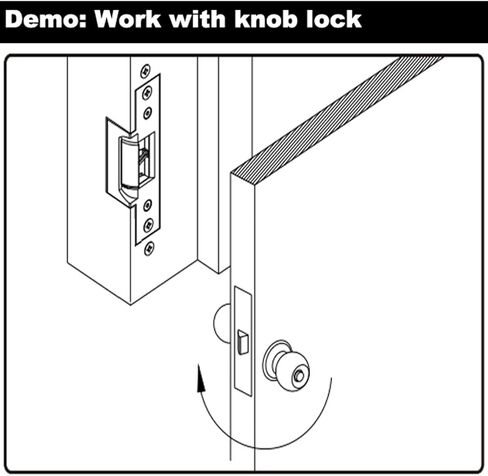

Strike lock are designed for use with mortise or cylindrical type locksets which need buy separate.
