Waveshare General Driver Board for Robots, Compatible with Raspberry Pi and Jetson Nano, Based On ESP32, Multi-Functional, Supports WiFi, and ESP-Now Communications
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features

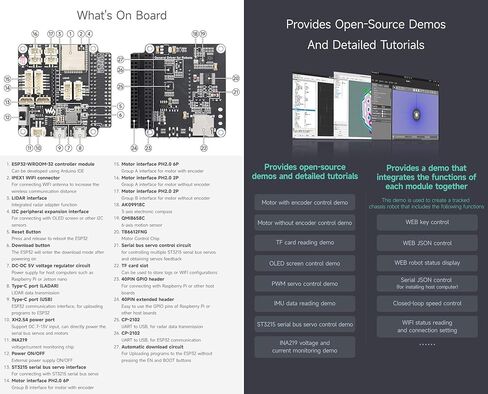

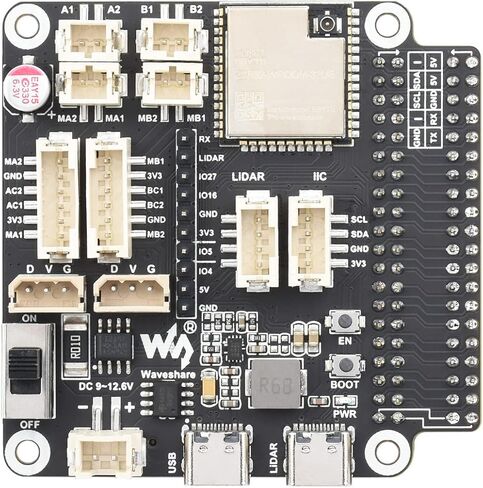

Based on the ESP32-WROOM-32 module, supports wireless communication such as WIFI, blutooth and ESP-NOW. Onboard motor control interfaces for 2x DC motor with encoder or 4x DC motor (2 groups) without encoder
Onboard serial bus servos control interfaces for controlling up to 253 ST3215 serial bus servos and obtaining servos feedback. Onboard 9-axis IMU to obtain attitude and heading information at any time
Supports 7~13V power input, and can be powered directly by 2S or 3S lithium battery module. Automatic download circuit for easy uploading programs. Support input voltage/current monitoring. Onboard TF card slot
Onboard Laser Lidar interface and integrated UART to USB function. IIC interface for connecting peripherals such as OLED, IMU, and other IIC devices. Adapting Multi-functional extended header for additional functions, such as controlling servos or relays
Onboard 40PIN GPIO header for connecting and powering the host computer (Raspberry Pi/Jetson Nano, etc), communicating via serial port or IIC. Provides open-source demos and detailed tutorials for beginners, easy to get started
