Technical Specifications:

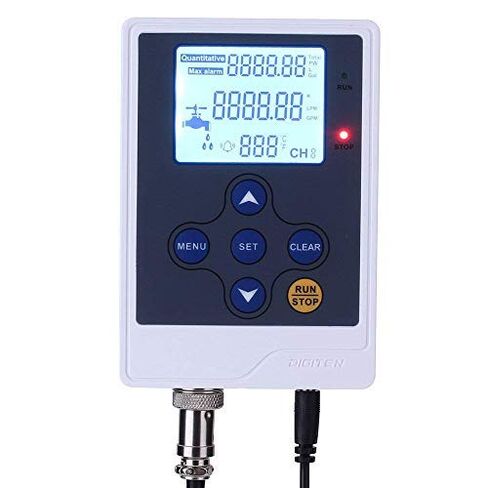

For DFC15 Controller:
Controller Power Requirement: 12VDC
Power Adapter: Input: 100-240VAC; Output: 12VDC, max 2A
Adapter lead length: 1m
Measuring Accuracy: ±1%
Output for Solenoid valve: 12VDC, max 5A
Temperature Sensor: 0-125℃/32-257℉, NTC3950, Accuracy: ±1℃/±1℉ thread: M8
Max Total Volume : 999999 G/L
Quantitative Range: 0-9999.99 G/L
Flow Rate Range: 0-9999.99/LPM(GPM)
Cable Length : 1m
Dimensions: 88mmx126mmx30mm
Weight: 200g
Operation Environment: Temperature: 0-50℃/32-122℉; Relative Humidity:
For G1/2" Gear Flow Meter:
Connection: G1/2" thread male
Flow range:1-30L/min
Power requirement: 3-12V DC
Outer diameter: 20.47mm
Accuracy:±0.5%.
Output singal: pulse singal, 2.5mL/P
Max operation pressure: 0.8Mpa with fluid temperature of +20℃
Ambient operating temperature: -10 to 70℃(freezing must be avoided)
Wiring: Red---Power+;Black---Power-;Blue---Pulse singal
This product mainly used to measure oil, gasoline, diesel, milk,chemicals(weak acid and base), etc liquids.

How to work:
1. Set K value, quantitative value, max alarm value, properly install the flow sensor and solenoid valve.
2. Press the RUN/STOP button, the controller works, total will continuously display the current flow volume, and current flow rate, and the faucet will start animated display.
3. When the flow reaches the quantitative setting value, the controller turn off the solenoid valve automatically, and the total value stop, faucet animation will be stopped dropping, flow rate back to zero.
4. Pressthe RUN/STOP buton again and the controller will repeat the same job.

Note: Avoid the water into the controller.

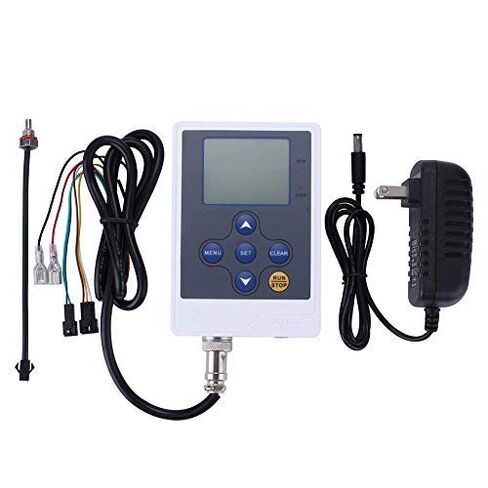

Package includes:
1 x DFC15 controller
1 x G1/2" gear flow sensor
1 x Power adapter
1 x Temperature sensor
1 x Manual
