PanaVise is a major manufacture of Vises and Work Holding Tools. PanaVise's Tilt, Turn & Rotate technology has been applied to the product line, allowing for maximum efficiency and many different uses. Introducing the Panavise 304 Low PROFILE HEAD, popular for jewelry making, watch repair and lapidary work! This unique Head can be positioned more closely to the work surface and is perfect for use under a magnifying light. When used with a 305 Low Profile Base, you can create a very Low-profile Vise. Features steel jaws. Throat depth: 1.375-inch (34.9mm)
Length: 7.75 (196.8mm), Weight: 1.4 lbs. (0.6kg).

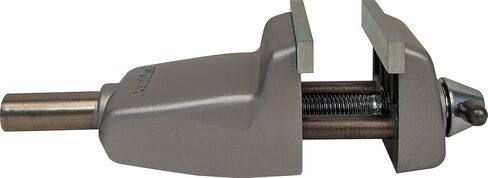

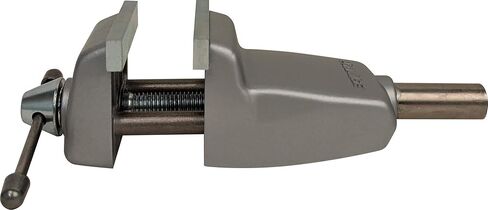

The PanaVise 304 low-profile vise head is work-holding tool head designed to maximize clear visibility of work items by bringing them as close as possible to the work bench surface. The 304 head has a lateral-oriented shaft and is compatible with all PanaVise 300 series work-holding tool bases. It ships with steel jaw pads designed to tolerate high heat environments, while supplying secure holding power.
Low-profile orientation designed for detailed work.
The Right Vise Head for Detailed Work The PanaVise 304 low-profile vise head is a specialized work-holding tool accessory designed for detail-oriented work such as jewelry making, watch repair and lapidary. Its shaft diameter is 5/8" (15.9 mm) which makes it compatible with the full product line of PanaVise 300 series bases. Unlike most other vise heads, the shaft of the PanaVise 304 low-profile vise head extends to the side of the vise jaws, instead of from its bottom. When used with a PanaVise 300 series base, which feature 90-degree head tilt functionality, the lateral shaft orientation enables the head to maintain a profile just above the work bench surface. This alignment brings held items closer to the user and makes it easier to position them under magnifying lights commonly used in detail-oriented work.
The vise head is 7-3/4 (196.8 mm) tall, weighs 1.4 lb. (0.6 kg), with a throat depth of 1-3/8" (34.9 mm). Its jaw openings are lined with steel jaw pads, designed to securely hold items in high heat environments. Jaw pads designed for other purposes are also available for additional purchase and are swapped in using two mounting screws.

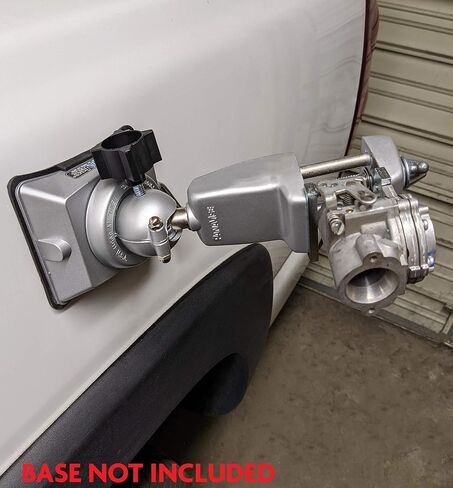

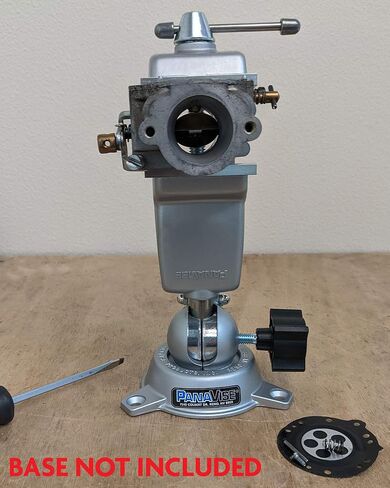

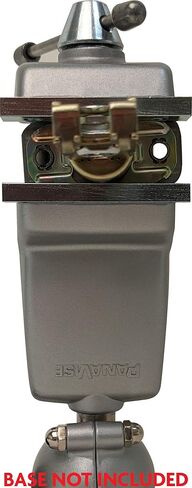

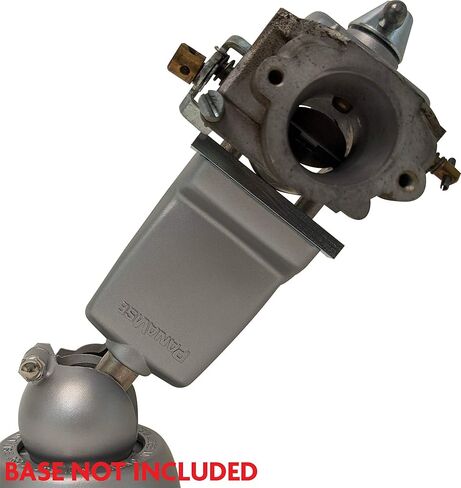

Compatible with all PanaVise 300 series bases (base, base mount sold separately).
Key FeaturesLow-profile vise head suitable for detail oriented work like jewelry making, watch repair, and lapidary
Compatible with PanaVise 300 series bases
Utilizes the adjustability of PanaVise 300 series bases to position item as close as possible to the work surface and user
Traditional outer jaw screw mechanism with sliding handle
Removable steel jaw pads designed for firmly holding objects in a high heat environment
Additional jaw pad replacements are available
SpecificationsLength: 7-3/4" (196.8 mm)
Weight: 1.4 lb. (0.6 kg)
Throat depth: 1-3/8" (34.9 mm)
Shaft diameter: 5/8" (15.9 mm)
Steel jaw pads Dimensions: 2-1/2" (63.5 mm) (w) x 1/2" (12.6 mm) (h)
Heat tolerance: designed for firmly holding objects in a high heat environment

What's in the Box?PanaVise 304 low-profile head
User's manual and warranty information
