1 Set 35mm 40mm Hinge Jig Door Cabinets Concealed Hinge Installation Aids Woodworking Tools(with Hole Opener and 2mm Drill Bit)

KWD 7
Brand
Onyehn
Category
Jig Accessories
Weight
287 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

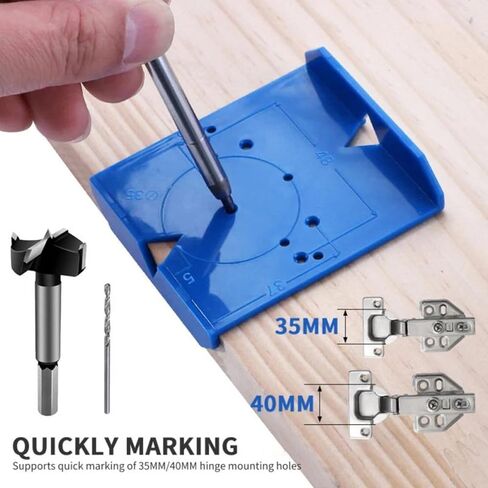

  • Supports 35mm and 40mm hinges, one side for 35mm hinges and one side for 40mm hinges
  • With the center a V-locator function, it is convenient to align the side panel with the cabinet door, and the installation effect is more perfect

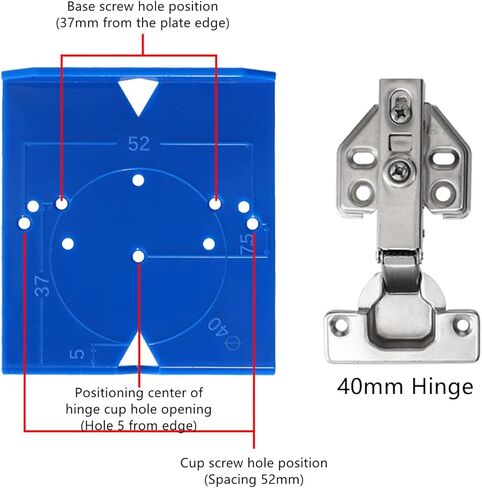

  • Accurately locate the hinge cup opening position and the mounting screw hole position
  • The 35mm/40mm cemented carbide drill bit is sharp and durable, with high drilling efficiency.
  • Application: Suitable for positioning and installation of hinges of furniture doors and cabinets.

Description

Specifications:
Name: Hinge Hole Drilling Guide Locator
Drilling Guide Locator Material: ABS
Drilling Guide Locator Colour: Blue
Apply to Diameter: 35/40mm
Drill Bit Material: Cemented Carbide

How to use:
1. Determine the position of the hinge cup and draw the center connecting line of the two wooden boards.
2. According to the specification mark on the hinge positioning ruler, make the hole position mark of the base screw, and then drill the hinge cup hole.
3. Mark the hole positions of the base screws on another board, and easily drill holes according to the hole positions.
4. Install the hinge.

Package Included:
1 * Hole Locator
1 * 35mm Hole Opener
1 * 40mm Hole Opener
1 * 2mm Drill Bit
