Special Features

  • ✅M7500 compressed air piping system regulate system pressure to a maximum of 200 psi @ 73 °F/160 psi @ 140 °F.
  • ✅M7500 compressed air piping system pressurize system slowly, turn off air cpmpressor when not in use.
  • ✅M7500 compressed air piping system check local building codes before installation, do not point compressed air source at anypart of your body or at any person.
  • ✅M7500 compressed air piping system always use eye protection when usingcompressed air.
  • ✅GOMADEIT provides free return and exchange service for life, please contact GOMADEIT by email.

Description

"

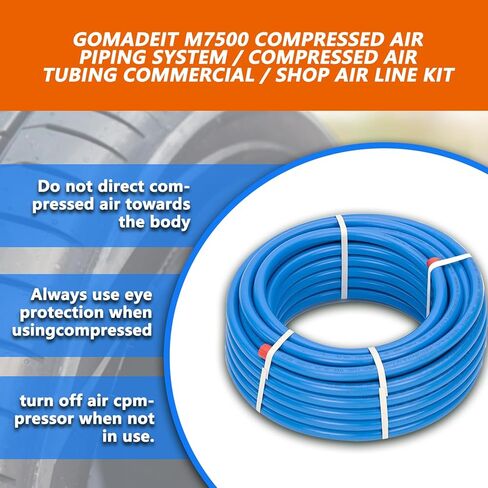

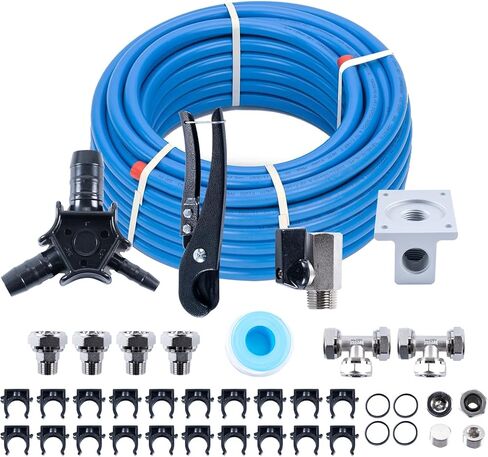

M7500 Compressed Air Piping system

CUT the tubing square with the cutter ROTATING wrist while cutting.
BEVEL the inside of the tubing by inserting the reaming tool and rotating it at least 3 fullturn.
Remove nut and split ring from fitting and place on tubing.
PUSH the fitting onto the tubing and fully against the shoulder of the fitting.
TURN the nut hand tight .Put a reference mark on the nut and fitting body.
TIGHTEN nut with wrench a minimum 3/4 of a turn or until tight.
"
