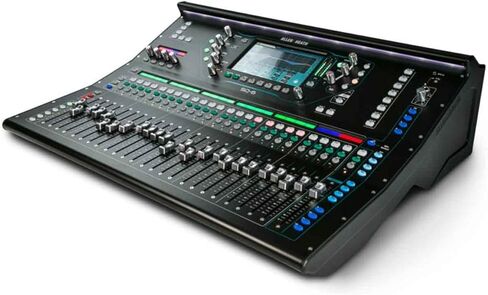

Allen & Heath SQ-6 Digital Mixer, 48 Input Channels, 36 Total Busses, 32×32 USB Audio Interface, 7" colour touchscreen, 24 Onboard Preamps, 25 Faders, 16 SoftKeys, 4 Soft Rotaries, AES Digital Output
Key Features48 Input Channels, 36 Total Busses, PAFL Bus, 12 Stereo Mix (Aux or Group) + Main

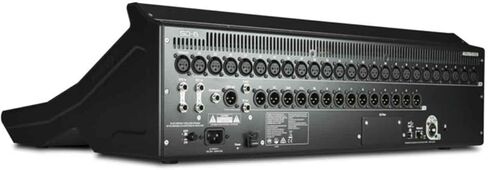

24 Local Mic Inputs (XLR), 2 1/4" Stereo Inputs (TRS), (1) 3.5mm Stereo Input, 16 Assignable Local Outputs (14 XLR + 2 1/4" TRS)
Dedicated Talkback mic input (XLR), 1/4" TRS Headphone out with dedicated control, SLink EtherCON connection for remote audio using dSnake/ME, DX or GigaACE/GX protocol (128x128 channels)
I/O Port for Option Card (including 3 rd party protocols – Dante/Waves)
8 Mute Groups, DCA Groups, 8 Stereo FX with dedicated FX Returns
DEEP Processing Ready, RackFX Effects suite
24+1 Faders with 6 Layers for 144 assignable Channel Strips
SpecificationsMic/Line Inputs: Balanced XLR, fully recallable
Input Sensitivity: -60 to +0dBu
ST1, ST2 connectors: Balanced, 1/4" TRS jack
ST3 connector: Unbalanced, stereo 3.5mm Mini Jack
XLR Outputs: Balanced, XLR
AES Digital Output: Balanced XLR 2 channel, 96kHz sampling rate (Default with SRC Bypassed) Switchable output sample rates,44.1kHz/ 48kHz/ 88.2kHz/ (96kHz) 2.5Vpp balanced terminated 110G
SLink Connection: Neutrik EtherCON (RJ45)
I/O Port: Multi-channel I/O option module
System: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
Frequency Response: +0/-0.5dB 20Hz to 20kHz
Latency: less than 0.7mS, Local Mic Input to Main L/R
Mains Power: 100-240V AC, 50/60Hz
Max Power Consumption: 90W
Dimensions (WxDxH): 25.1" x 20.3" x 7.8" (Desk Mounted)
Weigth: 32 lbs
Frequency Response: +0/-0.5dB 20Hz to 20kHz
