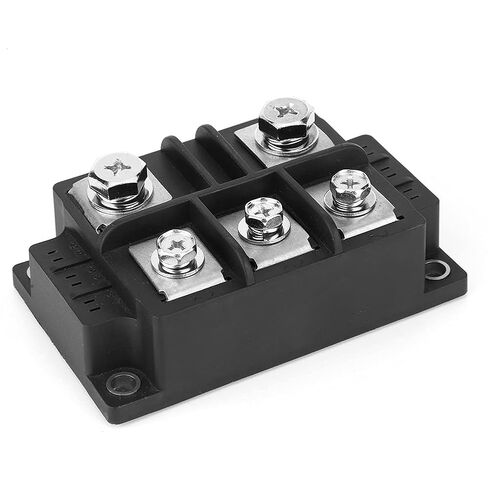

MDS 300A 1600V Rectifier Bridge 5 Terminals 3 Phase AC to DC High Power Rectifier Resin Packed Rectifier Module, Full Diode Module Heatsink Shape for Automotive Home Appliance

KWD 17
Brand
Focket
Weight
0.6 kg
– 1 +

Special Features

  • 【PARAMETER】Reverse Voltage: 1600V; Output Current: 300A; Peak current: 15mA. The chip of full diode module rectification module is electrically insulated from the backplane, 2500V AC voltage.
  • 【FUNCTION】Convert your three phase current input into DC with this Bridge Rectifier. Fully crimping structure, excellent temperature characteristics and power cycling capability.
  • 【ADVANTAGE】The Bridge Rectifier has large overcurrent capacity, good heat dissipation and reduced pressure. This high power bridge rectifier is widely used in power supplies. Resin packing provides excellent for inside components.
  • 【POWERFUL FEATURES】Single phase, full ,Low reverse leakage current,Low power loss, high efficiency. Small size and light weight,easy to carry and portable. Our team is committed to providing 100% satisfactory service. If there are any problems with it, contact us and we would be very happy to solve your problems. Be sure to Add to Cart.
  • 【WIDE APPLICATION】A high quality bridge rectifier for converting AC input to DC output. A welded structure with good temperature and power cycling capability ensures more stable performance. Applicable to military/aerospace, home appliances, automotive electronics, new energy.

Description

1. The chip is electrically insulated from the backplane, 2500V AC voltage.
2. Fully crimping structure, excellent temperature characteristics and power cycling capability.
3. Small size and light weight,easy to carry and portable.
4. Resin packing provides excellent for inside components.
5. Applicable to military/aerospace, home appliances, automotive electronics, new energy.

Specification:
Item Type:Rectifier
Model: MDS300A 1600V
Package: Resin Package
Installation Type: Welding
DC Output Current: 300A
Reverse Repeat Peak Voltage: 600-1600V
Reverse Repeat Peak Current: 15mA
Positive Non-Repetitive Current: 2.1KA
Threshold Voltage: 0.8V
Slope Resistance: 2.8mΩ
Forward Peak Voltage: 1.35V
Insulation Voltage: 2500V
Installation Torsion (M5): 4N·M
Installation Torsion (M6): 6N·M
Storage Temperature: -40~125°C

Package List:
1 x Rectifier
