5V 60mm 6 Terminal Hand Wheel Pulse Encoder CNC Pulser Handwheel Mill Router Manual Control for CNC System Milling Machine Lathe(White),Control Handwheel

KWD 7.500
Brand
Garosa
– 1 +

Special Features

  • 100% brand new and high quality
  • Pulse Encoder is suitable for manual pulse input type such as CNC or Milling machine
  • High reliability, 6mm terminal connection type
  • Ultra-thin and lightweight design, metal gear, smooth rotation, no sticking point position
  • Hand wheel 100 stop positions, can return to normal, no high level output

Description

Specifications:
Material: Aviation Aluminum
Color: Black, White (Optional)

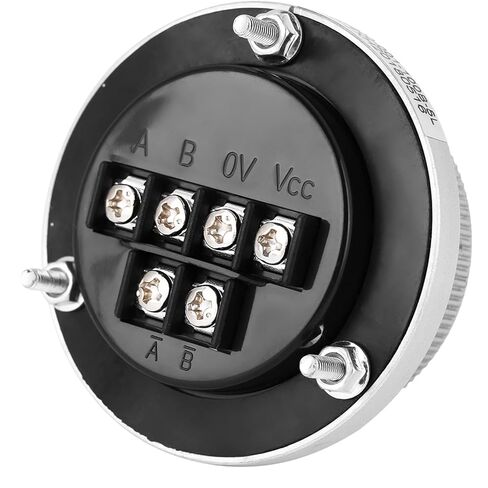

Product type: 6 Terminal
Voltage: 5V
Diameter: 60mm/2.36in
Consumption current: 100mA
Response frequency :0-20 KHZ
Empty ratio: 0.5 T ± 0.1 T
Mechanical revolution: 500rpm
Normal revolutions: 200RPM
Protection: oil proof, water-resistance, dustproof IP54
Working temperature: -10~70
Working humidity: 30-85%
Size: as the picture
Weight: 200g

Package includes:
1 x CNC Pulse Encoder
