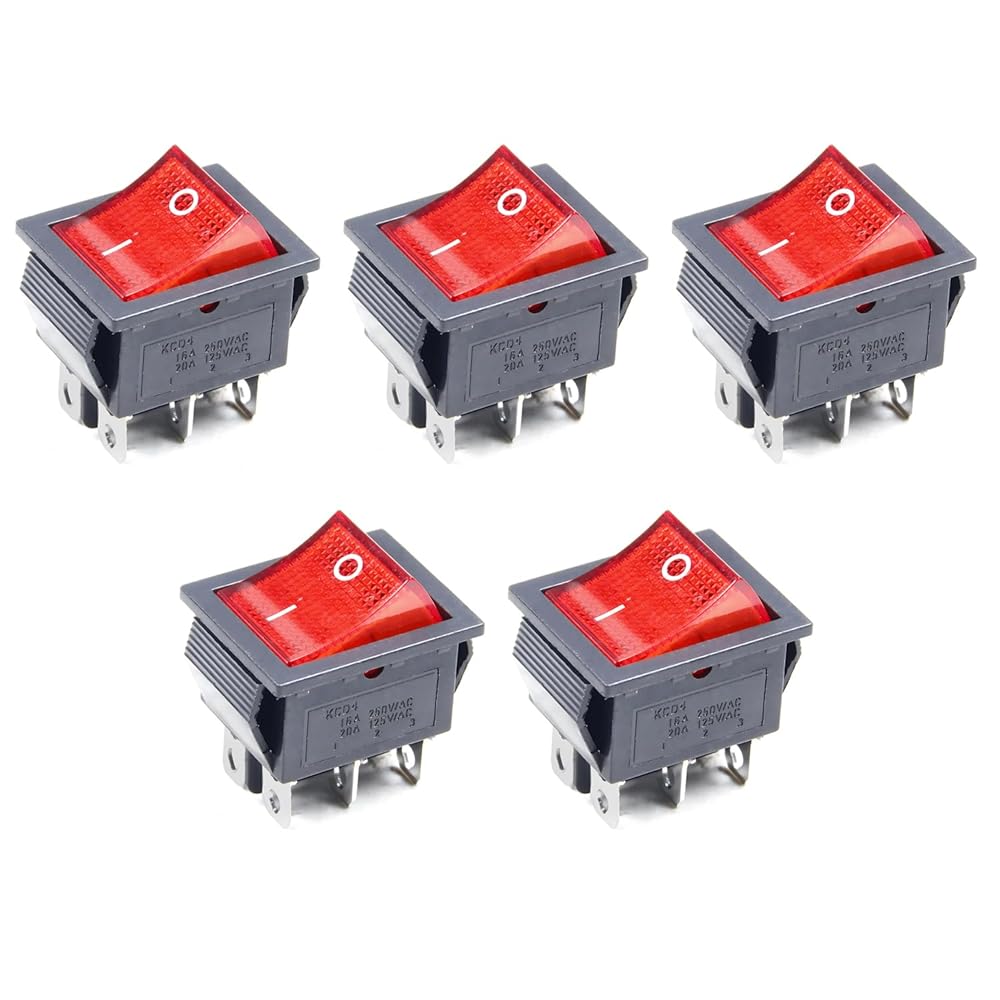

Fielect On/Off 6Pin Boat Rocker Switch

Specification:

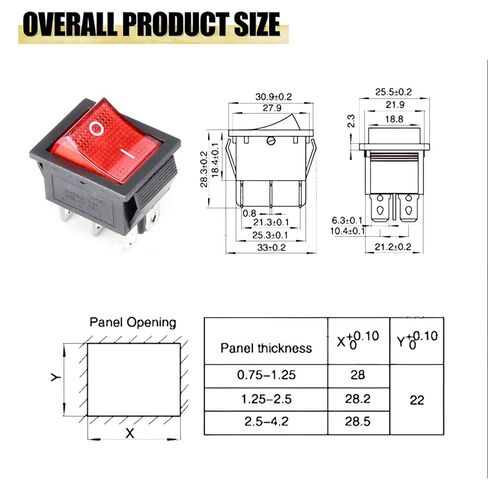

Total Size:31*25mm/1.21"*0.98"（L*W)
Mounting Size: 28*22mm/1.09"*0.86" (L*W)
Product Name：Rocker Switch
Terminals: 6
Position: ON/OFF
Rating Voltage: AC 250V/16A 125V/20A
Light Voltage: Red Light
Material: Plastic, Metal

Product Soldering Precautions:

Any incorrect soldering operation may result the pin in deformation and poor switch contact. Be sure to pay attention to the following points when wiring
Select the appropriate soldering iron to speed up the soldering. It is recommended to use 20W soldering iron to complete the soldering within 3 seconds. The flux must be in proper amount. When soldering, try to turn the switch pin down.
Package Content :

2 x Boat Rocker Switch
