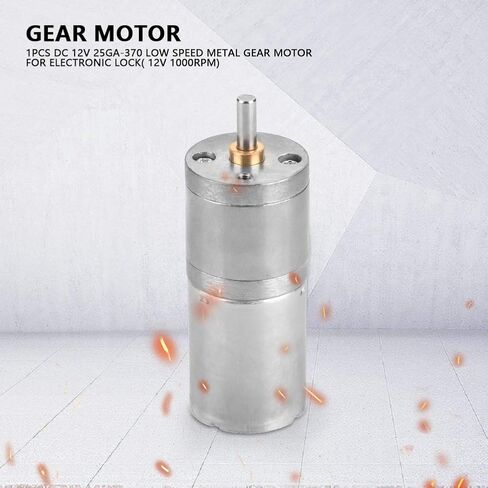

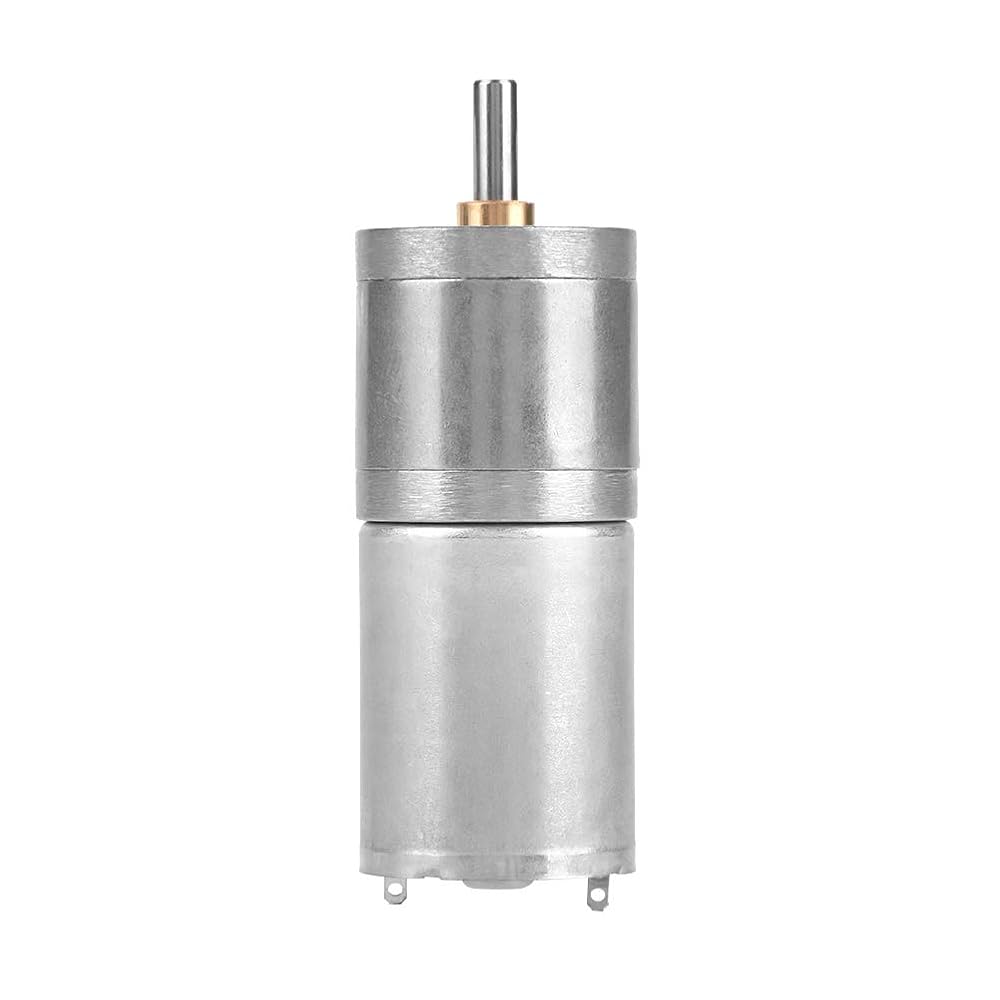

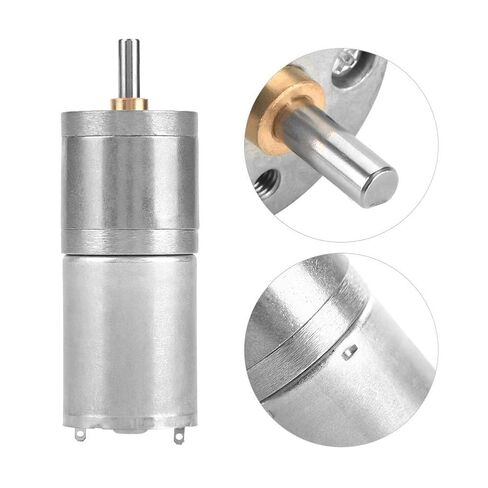

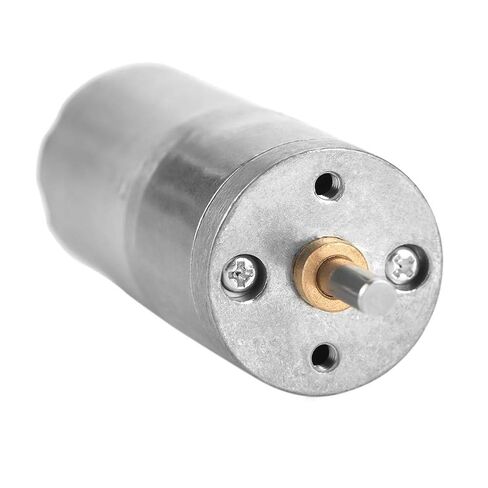

Gear Motor 25mm DC 12V 25GA-370 Low Speed Metal High Mini Gear Motor for Electronic DIY 5-1000RPM(12V 1000RPM)

KWD 3.500
– 1 +

Special Features

  • The high metal gear is stable when working. The rotor part is made of pure copper, the resistance is small, and the conductivity is strong, which increases the motor .
  • This DC motor features large moment of force, low speed, and low noise. With an enlarged carbon brush structure, the rated is greater.

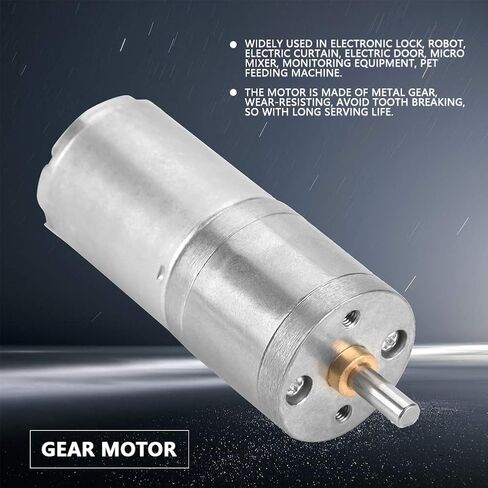

  • Widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, smart balance cars etc. It is convenient to install, not easy to slip, saving installation time.
  • The motor is made of metal gear, wear-resisting, avoid tooth breaking. This motor is adopted of pure copper wire coil, with low heat and low loss.
  • High wear resistance, strong torsion resistance, long life, fast heat dissipation, high and strong compounding ability. More and smoother .

Description

Specification:
Model: GA25YN370
Rated power: 3.5 (W)
Product type: Brush dc motor
Rated voltage: 5-12 (V)
Rated current: 0.06 (A)

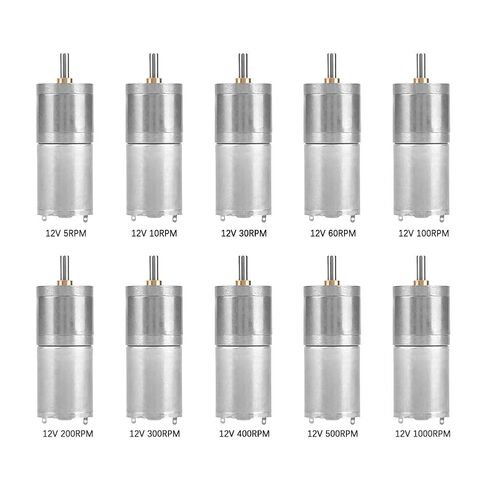

Type(Optional): 12V 5RPM, 12V 10RPM, 12V 30RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM, 12V 300RPM, 12V 400RPM, 12V 500RPM, 12V 1000RPM

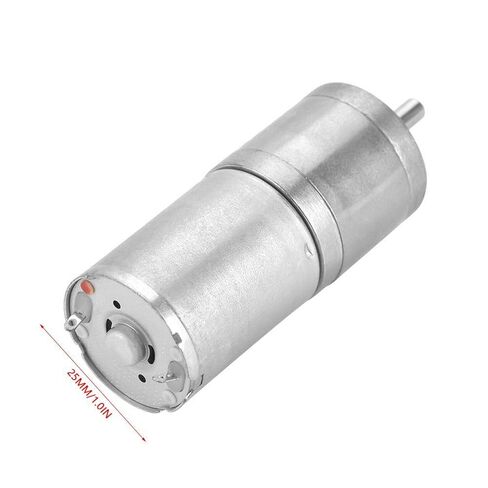

Outer diameter: 25 mm/1.0in
Shaft diameter: 3 mm /0.1in
Shaft length: 10 mm/0.4in
Weight: 96g/3.4oz Voltage Gear ratio no load load Stall speed Current speed Current toqure Current toqure 12V 1:650 5RPM 150MA 3RPM 70MA 1150gf.cm 2.1A 15.4kgf.cm 12V 1:150 10RPM 170MA 7RPM 100MA 980gf.cm 2.1A 14.8kgf.cm 12V 1:150 30RPM 170MA 25RPM 100MA 770gf.cm 2.1A 12.0kgf.cm 12V 1:200 60RPM 170MA 51RPM 100MA 750gf.cm 2.1A 11.8kgf.cm 12V 1:100 100RPM 150MA 73RPM 185MA 660gf.cm 2.1A 10.5kgf.cm 12V 1:50 200RPM 180MA 165RPM 105MA 580gf.cm 2.1A 8.8kgf.cm 12V 1:30 300RPM 190MA 254RPM 145MA 180gf.cm 2.1A 7.8kgf.cm 12V 1:25 400RPM 190MA 344RPM 145MA 170gf.cm 2.1A 7.7kgf.cm 12V 1:20 500RPM 190MA 460RPM 145MA 150gf.cm 2.1A 7.5kgf.cm 12V 1:10 1000RPM 190MA 820RPM 145MA 88gf.cm 2.1A 7.2kgf.cm

Package list:
1 x gear motor
