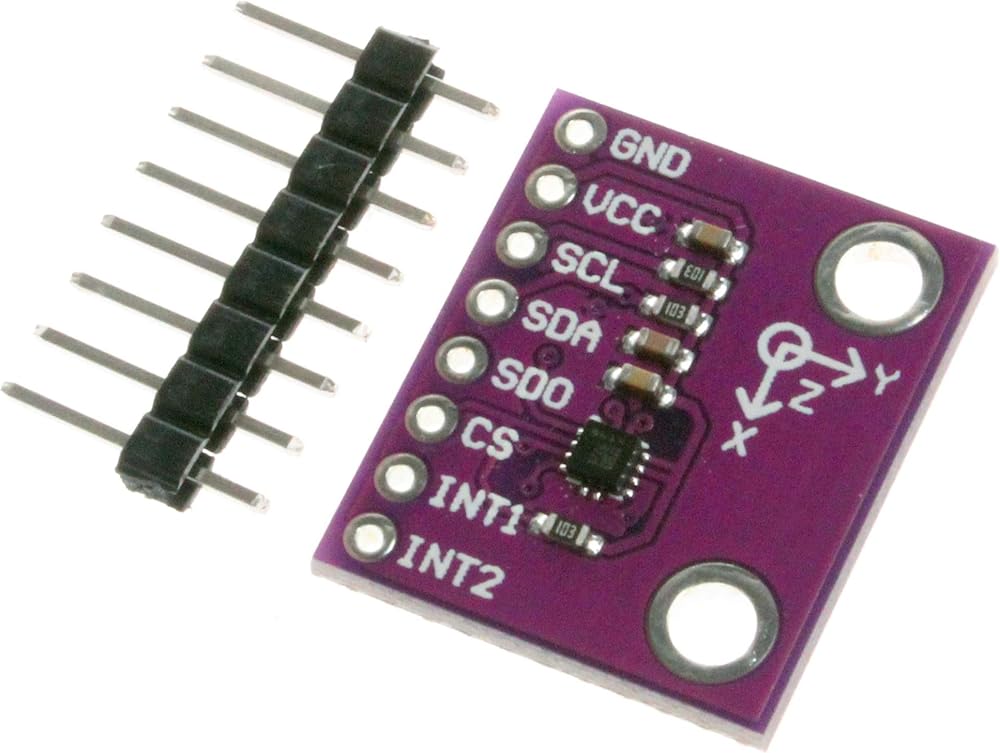

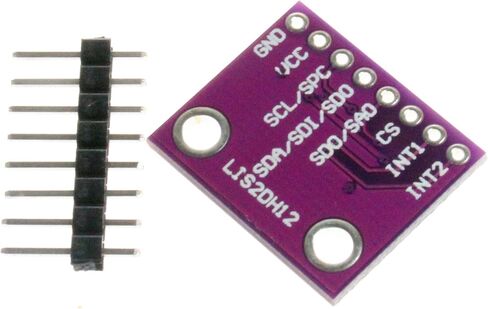

NOYITO LIS2DH12TR Three-axis Acceleration Module Sensor Development Board

KWD 3.500
Brand
NOYITO
Category
Sensors
Weight
8 g
– 1 +

Special Features

  • The LIS2DH is an ultra low-power high performance three-axis linear accelerometer, with digital I2C/SPI serial interface standard output.
  • The LIS2DH has dynamically user selectable full scales of ±2g/±4g/±8g/±16g and it is capable of measuring accelerations with output data rates from 1 Hz to 5.3 kHz.
  • The self-test capability allows the user to check the functioning of the sensor in the final application.
  • The device may be configured to generate interrupt signals by two independent inertial wake-up/free-fall events as well as by the position of the device itself.
  • The LIS2DH is available in small thin plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.

Description

Special Note: This product need a high level of professional use skills for users.
Parameter
Wide supply voltage, 1.71 V to 3.6 V
Independent IOs supply (1.8 V) and supply voltage compatible
Ultra low-power mode consumptiondown to 2 μA
±2g/±4g/±8g/±16g dynamically selectable full-scale
I2 C/SPI digital output interface
2 independent programmable interrupt generators for free-fall and motion detection
6D/4D orientation detection
“Sleep to wake” and “return to sleep” function
Freefall detection
Motion detection
Embedded temperature sensor
Embedded FIFO

Package Included:
1pcs NOYITO LIS2DH12TR Three-axis Acceleration Module
