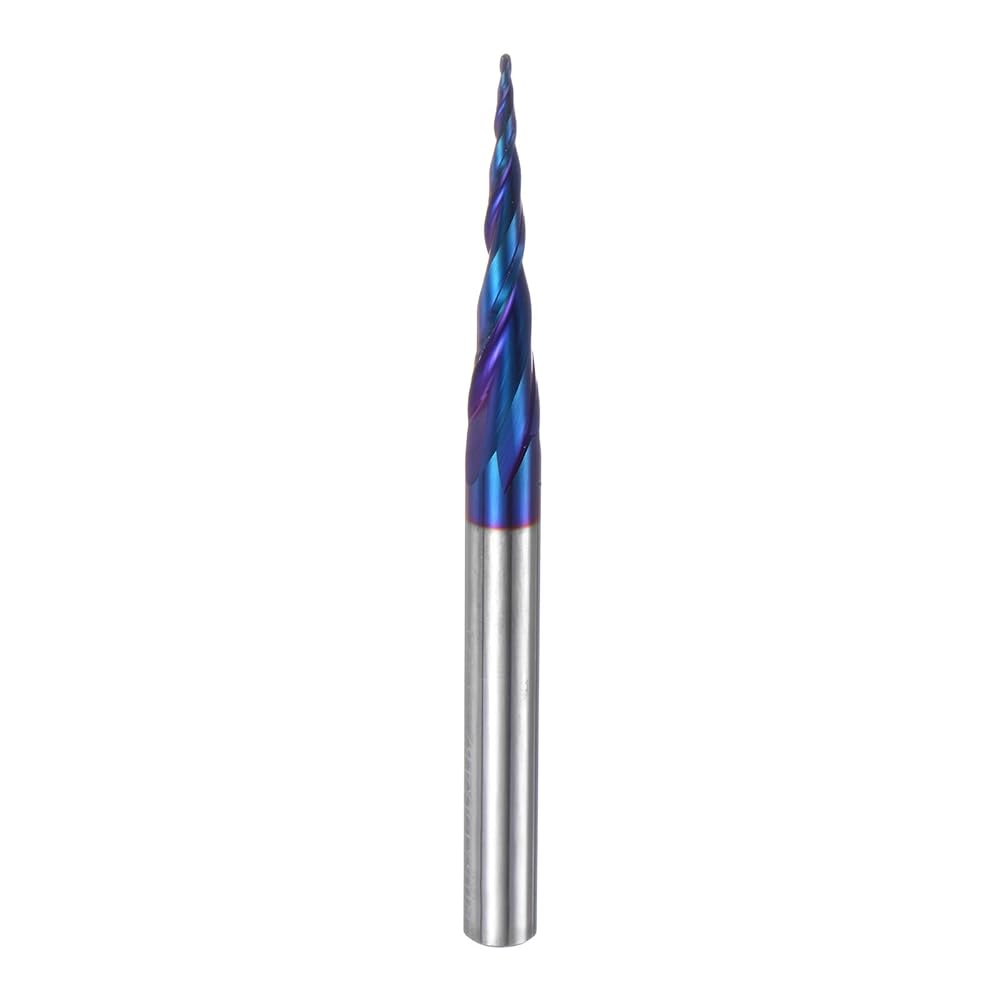

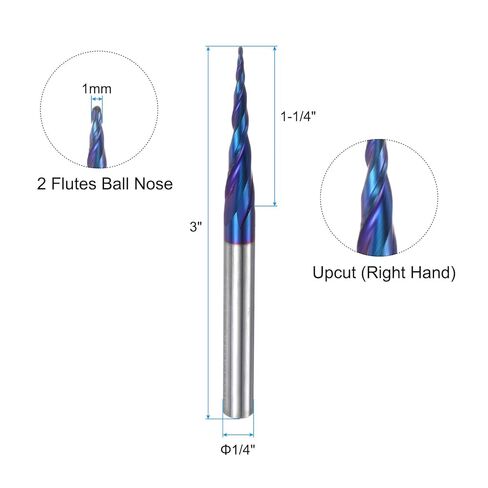

Tapered Ball Nose End Mill Size: Cutting radius: 0.5mm; cutting diameter: 1mm; shank diameter: 1/4"; cutting length: 1-1/4"; total length: 3"; number of spiral flutes: 2; end cut type: ball end; cutting direction: up cut (right hand)

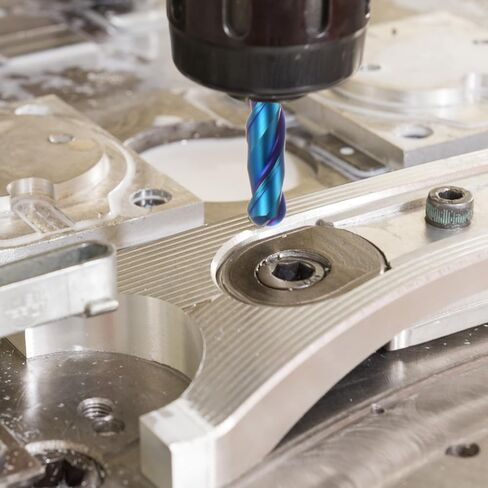

Wide Applications: Double-edged ball nose design, suitable for semi-finishing and finishing of various curved surfaces and arc grooves; Ball end mills can perform chamfer milling on steep/straight walls and contoured surfaces. Suitable for carbon steel, malleable cast iron, alloy steel, stainless steel, etc.
Composite Coating: Nano aluminum chromium oxynitride coating provides high hardness, wear resistance and higher heat resistance. Offers excellent performance in high-speed machining applications. Suitable for a wide range of materials.

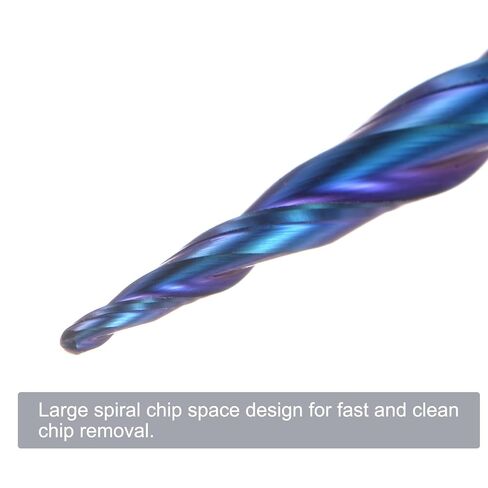

Solid Carbide: Solid carbide end mills offer high hardness, wear resistance, and heat resistance. CNC router bits are precision ground and polished, with high strength and good milling performance. The cutting edges are finely ground for smooth cuts. Large Spiral chip space design for fast and clean chip removal.
Easy to Use: Universal chamfered round shank, good compatibility and easy to use. Use on standard milling machines, CNC machining centers, engraving machines. The longer the length of the tool clamped by the chuck, the better. Use a suitable coolant or lubrication method during milling operations.
