380V 30A 3-Way Electrical Equipment Connectors Ceramics Terminal Block High Temp Porcelain Ceramic Connectors

High quality materials: Ceramic terminals are made of high-frequency ceramics with glazed surface, insulation and high temperature resistance.
The conductor is thickened copper conductor with nickel plated surface. The crimping plate and screw are made of high-quality iron, and the surface is nickel plated.
Each pair of terminals is insulated from other terminals to prevent circuit failure.
Widely used in household appliances, electrical control, power supply, barbecue equipment, electric oven, heating equipment, etc.
Electrical index: 380V, 30A. Package includes: 1 PC of 3-digit high-power ceramic terminal block.

High quality materials: Ceramic terminals are made of high-frequency ceramics with glazed surface, insulation and high temperature resistance.

Usage: insert the wire into half of the terminal hole, press it with screws, and treat it with the other wire connected to it to realize wiring.

Widely used: for household appliances, electrical control, power supply, barbecue equipment, electric oven, heating equipment, etc.

texture of material:

Insulator: high frequency ceramic, glazed

Conductor: copper, nickel plated

Crimping plate and screw: iron, nickel plated

Electrical index: 380V 30A

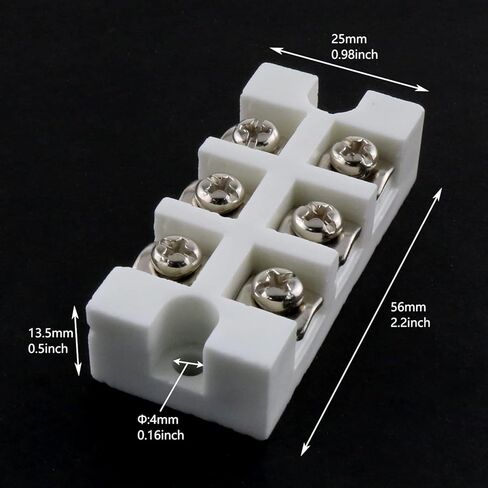

Dimensions: 56mm x 25mm x 13.5mm / 2.2 ''x 0.98 '' x 0.5 ''(l x w x t)

Fixed hole spacing: 43mm / 1.69''

Package: 1 piece of 3-way high-power ceramic terminal block
