CAT40-FMB27-60 Shank Face End Mill Arbor and 3.15"/80mm Cutting Diameter 6 Flute 400R-80-27-6T CNC Face End Milling Shell Cutter with 10Pcs APMT1604 Carbide Inserts and T15 Wrench

KWD 31.500
Brand
BestParts
Category
Cutting Tools
– 1 +

Special Features

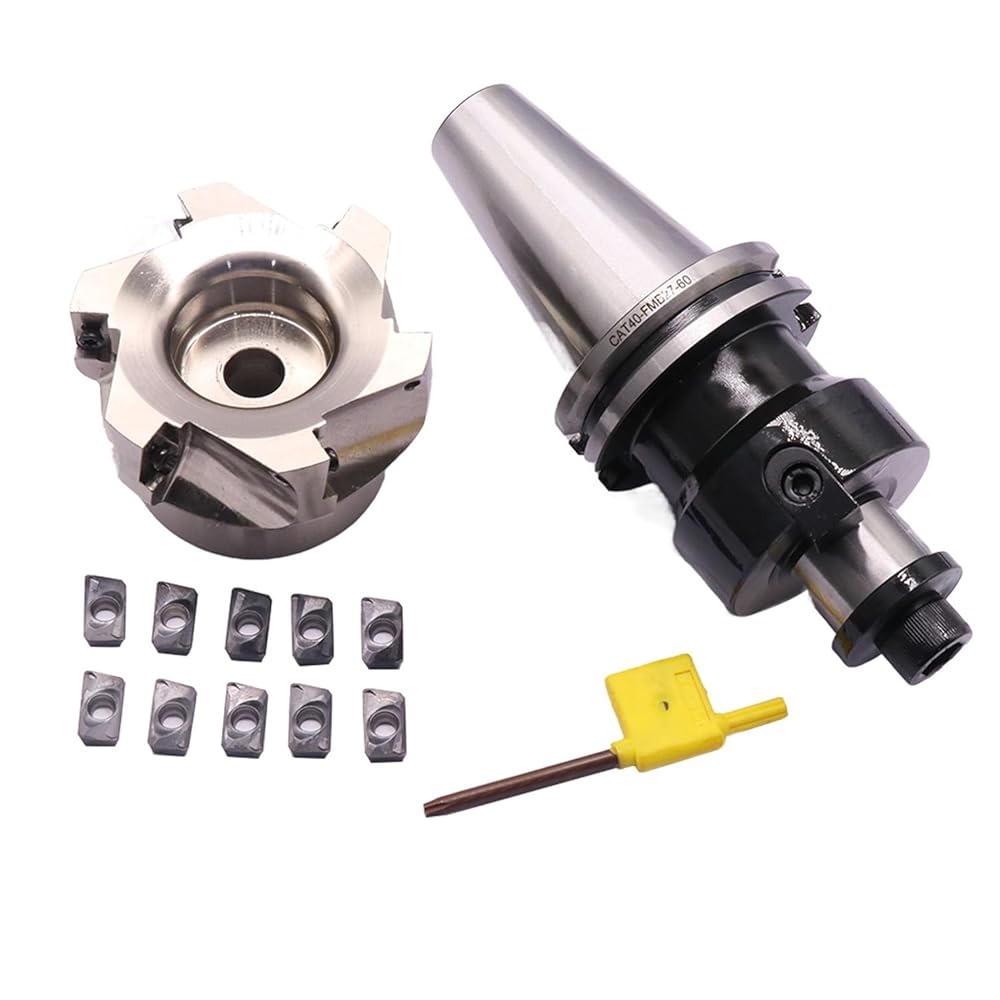

  • Set includes: 1 x CAT40-FMB27-60 Arbor, 1 x 400R-80-27-6T Cutter, 1 x T15 Wrench, 10 x Black APMT1604 Carbide Inserts as pictured.

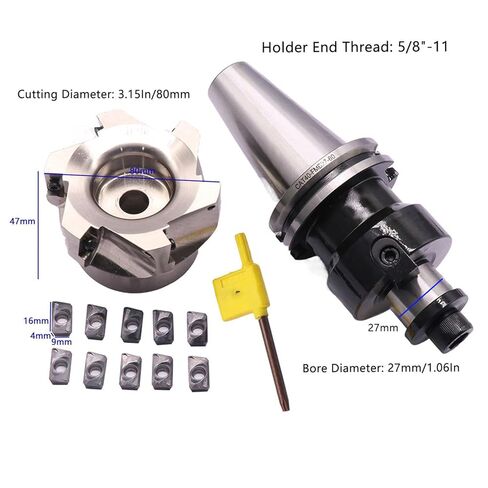

  • CAT40-FMB27-60 Arbor: 27mm/1.06In Bore Diameter, 5/8"-11 Holder End Thread.
  • 400R-80-27-6T Face End Mill Cutter: 80mm/3.15in Cutting Diameter, 6 Flutes, 27mm/1.06In Bore Diameter.
  • APMT1604 Carbide Insert: 85°Nose Angle Parallelogram, 11°Relief Angle.
  • Function: Machining planes, grooves, and cutting off workpieces on milling machines. Milling speed and processing efficiency are high, and the surface quality of the processing is also good. It is possible to add T parts with hard skin and hardened layers, which has obvious advantages in improving product quality and processing efficiency.
  • High Quality: Made of fine quality steel, good permeability,sturdiness and durability, resistance to multiple impacts,fine durability. Smooth surface, comfortable feeling, nice appearance.
  • Good Performance: Milling rotary tool is screw locking, the chip large space, good chip removal, edge can fit a variety of materials.
  • Widely Application: This shank face mill arbor set is designed for shoulder milling, face milling and slotting, mainly used for CNC machining centers, CNC engraving machines. It can also be installed on an ordinary milling machine to process some harder and less complex heat-treated materials.

Description

Specification:
Use for shoulder milling, face milling and slotting
Body made of high quality steel, durable

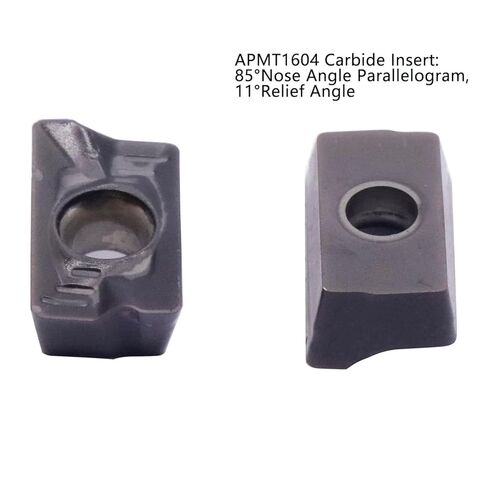

Carbide Insert
Material: cemented carbide
Model: APMT1604
85°Nose Angle Parallelogram
11°Relief Angle

Face Mill Arbor

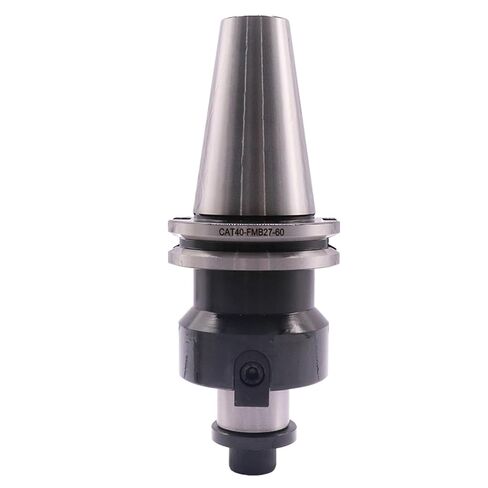

Model: CAT40-FMB27-60
Bore Diameter: 1.06In/27mm
Holder End Thread: 5/8"-11

Milling Cutter

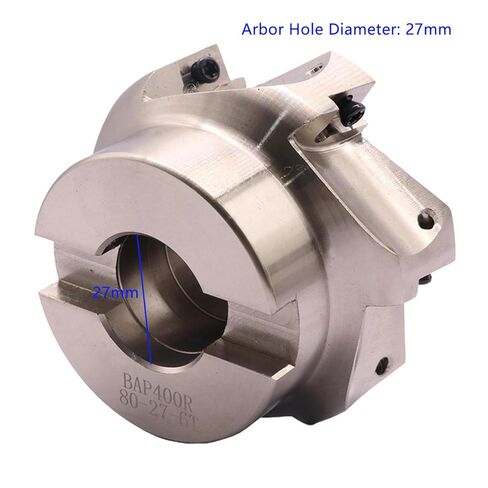

Model: 400R-80-27-6T
Flutes: 6-Flute
Cutting Diameter: 3.15In/80mm

Features:
400R 90° indexable milling cutter, matching with standard APMT1604 insert
Made of alloy steel with high hardness and strength to ensure long service lifeFine durability, long service life
High vibration-absorbing performance, improve the surface finish of the workpieceMade of tool steel hardened has high strength and hardness
Set including CAT40-FMB27-60 face mill arbor with 27mm bore for holding milling cutter
Set including 10pcs APMT1604 inserts, great for shoulder milling, face milling and slotting

Package included:
1 x CAT40-FMB27-60 Face Mill Arbor
1 x 400R 80-27-6T Face Cutter

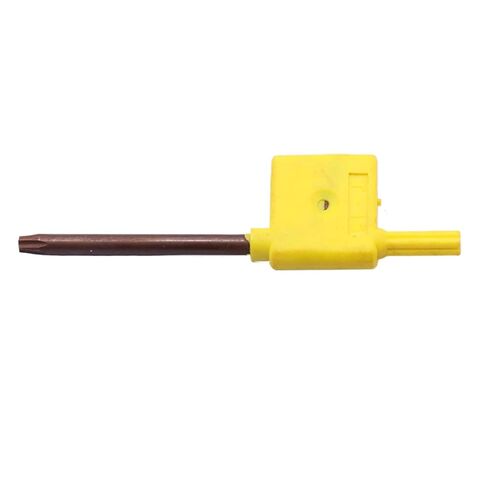

1 x T15 Wrench
10 x APMT1604 Carbide Inserts as pictured
