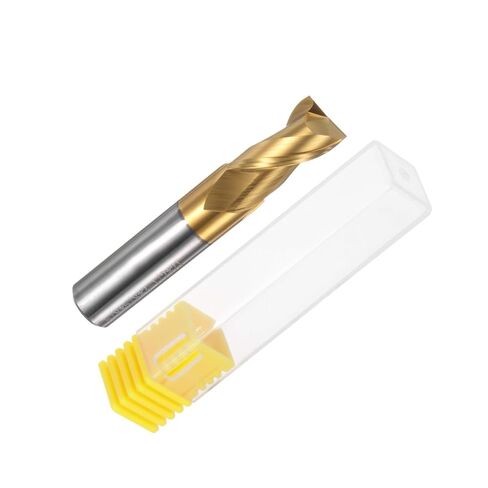

Square End Mill Size: Cutting diameter: 5/8"; shank diameter: 5/8"; cutting length: 1-5/8"; total length: 3-1/2"; number of flutes: 2; end cut type: square end; cutting direction: upcut (right hand)
Wide Applications: Mill bit can create slots (keyways or internal grooves), straight or square edge features, flat smooth surfaces, holes or for roughing, finishing and side milling operations. Suitable for high-speed machining of materials like aluminum, copper, and non-ferrous alloys.

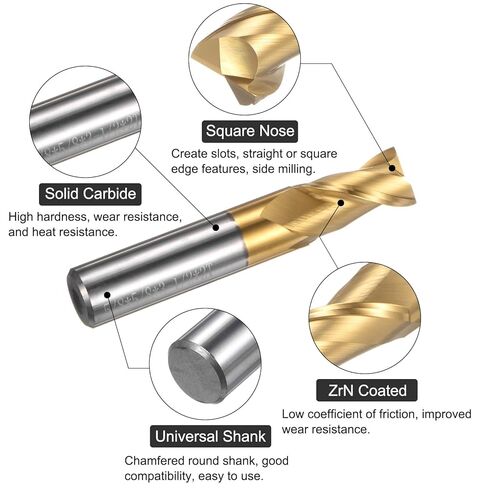

ZrN Coating: ZrN (Zirconium Nitride) coating provides high hardness, low coefficient of friction, improved wear resistance and good thermal stability. Micro grain carbide mill bits offers enhanced rigidity and excellent heat resistance.
Features: Precision ground cutting edges allow for clean, precise cuts, resulting in accurate machining and excellent surface finish. Up-cut spiral flutes lift chips upward and away from the cutting area. Large spiral design helps effectively remove chips during cutting.

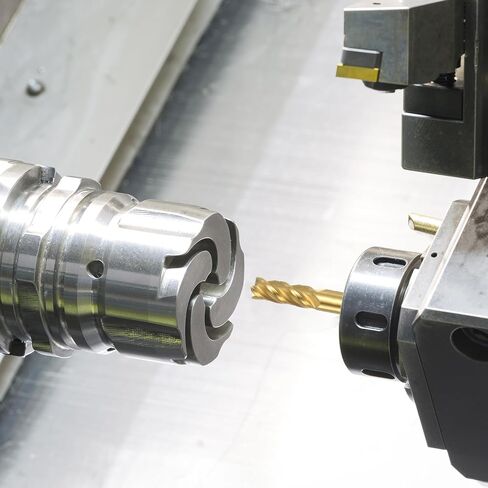

Tips: Use on standard milling machines, CNC machining centers, engraving machines. Make sure the end mill is suitable for the specific application and material being processed. Use a suitable coolant or lubrication method. Select an appropriate feed rate and cutting speed.
