Material :PP
Model :M16

Maximum contact rating :10w
Max switching voltage :100V DC
Max switching current: 0.5A
Maximum breakdown voltage :220V DC
Maximum contact resistance :100 mΩ
Rated temperature: -10 to 85 °C

Working principle: Set the magnetic spring switch as required, fix the float ball in the relevant position of the magnetic spring switch in the body tube, and make the float ball float up and down. The magnetic system in the float triggers the closing or disconnecting of the magnetic spring switch, which produces a switching action and controls the liquid level. Suitable for liquid level measurement under industrial conditions.

Features:
The float switch is used to sense the liquid level in water tank, and the switch can drive the pump, indicator and other devices.

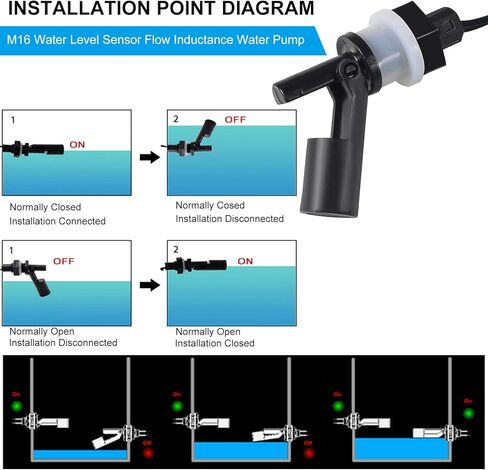

It can be easily converted from normally open to normally closed by reversing the float.

The float switch cannot directly control the solenoid valve or high-power relays, AC contactors, etc. Small relays are required for conversion.

When the water level is low, the ring magnet is in an open state and is normally open.
When the water level is high, the ring magnet is in a closed state, that is normally closed.

Package:
5PCS M16 Liquid level switch sensor
