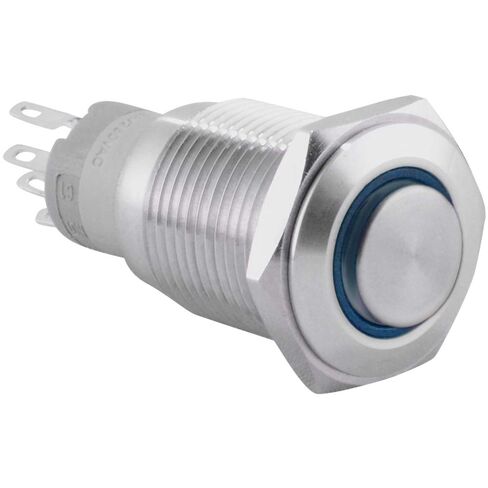

JacobsParts Latching Pushbutton ON/Off Maintained Power Switch Circular Metal Silver with Blue LED fits 5/8" (16mm) Diameter Panel Cutout Hole

KWD 3.500
Brand
JacobsParts
Weight
61 g
ColorBlue
Size16mm
– 1 +

Special Features

  • Latching maintained pushbutton power switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects. Use them as a power switch for auxiliary LED accent lights on truck beds, boat trims, sailboat masts, car underbodies, and motorcycles
  • This switch is constructed of non-oxidizing, corrosion resistant stainless steel. It has a protection rating of IP67 waterproof, meaning it can withstand exposure to heavy rain, splashes, etc., without damage
  • The switch and LED are separate. The LED can be on all the time or only when the switch is ON, depending on how you wire it
  • Installation: Cut mounting hole in the panel using a 1" drill bit. Screw the threaded "neck" of the switch into the panel cutout hole and secure it on the reverse side of the panel with the included metal nut. The included rubber O-ring may optionally be used for additional water resistance by placing the ring between the top of the neck (just behind the faceplate) and the front of the panel. Package includes switch, metal nut and rubber O-ring
  • Operation Type: Latching Maintained (Push it, ON; Push it again, OFF), Max Switch Rating: 250V AC/DC 5A, LED rating: 12V DC 15mA, Panel Cutout Diameter: 1-1/8" (28mm)

Description

Specifications
Operation Type: Latching/Maintained (Push it, ON; Push it again, OFF)
Panel Cutout Diameter: 1-1/8" (28mm)
Thread Depth: 3/4" (18mm)
Faceplate Diameter: 1-1/4" (32mm)
Total Depth (Including Contacts): 1-11/16" (43mm)
Max Switch Rating: 250V AC/DC 5A
LED rating: 12V DC 15mA
Contact Type: SPDT
Contact Configuration: 1NO1NC
Enclosure Material: Stainless Steel
Protection Level: IP67
Operation Temperature: -20C to 55C

Latching switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects
Constructed of stainless steel; resists rust and corrosion
The switch and LED are separate. The LED can be on all the time or only when the switch is ON, depending on how you wire it
Rated PI67 waterproof. May be exposed to heavy rain, splashes, etc. without damage
